Aggregate Crushing Stations Mobile Quartz Limestone Iron Ore Crushing Machine

Product Description

Product Description

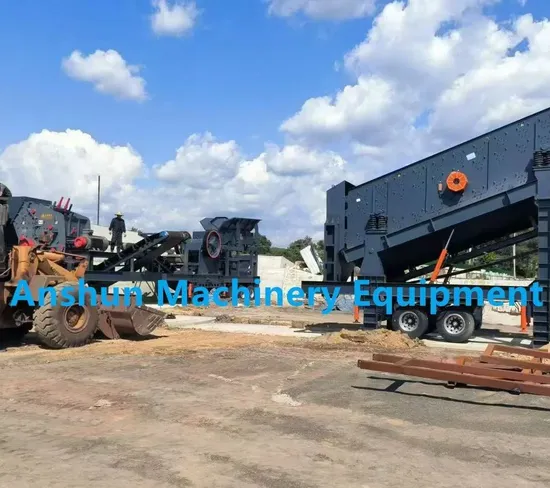

Mobile impact crusher plant is an integrated movable crushing equipment consisting of a feeder, impact crusher, belt conveyor, etc. Mobile impact crusher plant adopts the latest manufacturing technology and uses high-quality, high-chromium plate hammers and wear-resistant impact lining plates. The crushing ratio is large, coupled with the characteristics of high-quality finished product particles of the impact crusher, so this mobile crushing equipment has a wider range of use. It is especially suitable for construction waste treatment and construction waste crushing in small crushing sites.
Product Advantages
Compared with similar products, the tire impact crushing mobile crushing station independently developed by Henan Anshun Machinery combines the impact crusher (single-stage fine crushing, simple process, fine discharge, less over-crushing, and good particle forming) and mobile crushing. All the advantages of the station (easy to move, strong flexibility, reduced material transportation costs, integrated complete unit) are more advantageous in terms of finished aggregate particle size and production capacity. The crushed recycled aggregate can be directly used for brickmaking.
According to different crushing process requirements, it can be composed of "crushing first and then screening" or "screening first and then crushing" process. The tire impact crusher mobile crushing station can be combined into a coarse crushing and fine crushing two-stage screening system according to actual needs. The three-stage coarse, medium, and fine screening system has high flexibility and can meet the needs of different customers to the greatest extent.
Working Principle
The mobile crushing plant includes vibrating feeder, stone crusher, vibrating screen, belt conveyor, magnetic separator etc. When gravel stone is fed to vibrating feeder by the loader, they are crushed by heavy hammer crusher. The crusher materials will go to vibrating screen by foldable belt conveyor. After screen, the unqualified stone will go to crush again, the other qualified aggregates will be piled for further processing, such as removing iron, separating wood chips, cleaning etc.

Model	MZ3090F1010	MZ3090F1210	MZ3896F1214	MZ3896F1315
Impact Crusher Model	PF1010	PF1210	PF1214	PF1315
Feeder model	ZSW300*90	ZSW300*90	ZSW380*96	ZSW110*420
Main belt conveyor model	650*7m	650*7m	650*8m	800*8m
Side belt model (optional)	500*2.7m	500*2.7m	500*2.7m	650*2.7m
Iron remover	Optional	Optional	Optional	Optional
Number of axes	2	2	2	3
Transport size (mm)	9900*2450*4100	9900*2450*4100	9900*2900*4100	9900*2450*4500

Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.
Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
