Lxshow CNC Flexible Sheet Metal Iron Bending Machine for Sale

Product Description

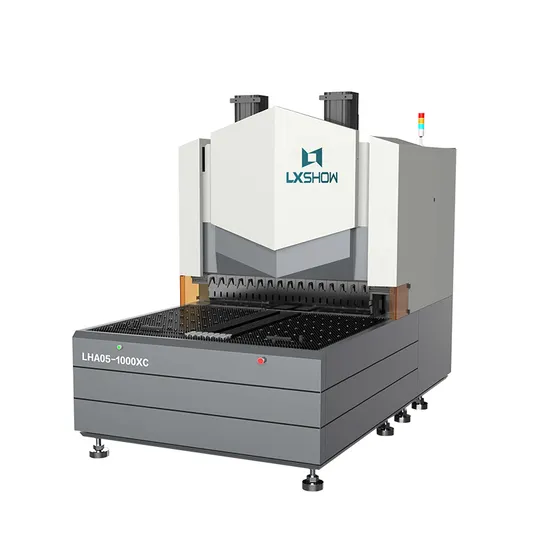

LHA05-XC series intelligent flexible bending center adopts suction cup feeding mode, the whole machine is designed and produced according to high precision machine tool standards. Suitable for flat sheet surface, no stamping holes, can be used for suction cup adsorption of the workpiece type. Standard with power hinge knife, using quick disassembly and quick installation type pressing knife, C-axis selection speed and accuracy improve.Product Parameters

Configuration Parameter	LHA05-1000XC	LHA05-1400XC
The fastest bending speed	0.2 s/knife	0.2 s/knife
Maximum bending width	1000mm	1400mm
Maximum bending height	170mm	170mm
Nominal voltage	380v	380v
Total motor power	27Kw	36Kw
Average power	1.2Kw	1.6Kw
Noise	50dB (about )	50dB (about )
Maximum bending thickness (Thicker plate can be customized)	UST 515N/mm2 201 Stainless steel 0.8mm
	UST 515N/mm2 304 Stainless steel 1.0mm
	UST 410N/mm2 Cold plate 1.2mm
	UST 515N/mm2 Aluminum plate 1.6mm
Minimum material thickness	0.35mm	0.35mm
Maximum bending size	1000*1000mm	1400*1400mm
Number of axles	Standard 11 axis concurrent linkage	Standard 11 axis concurrent linkage
Power hinge knife	Standard configuration	Standard configuration

Main Parts
The core frame of the equipment adopts high grade QT500-7 and gray iron 250 castings. Long-term operation is stable and reliable.Nanjing process 8020 heavy duty grinding screw, more stable transmission, higher precision.Choose Nanjing process heavy load type high precision P3 55 roller type line rail, bearing greater, higher precision.Selected NACHI original high load ball screw injection molding machine special bearings, bearing ball diameter up to 16mm. Samples
Factory
* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
Off-line Activity
After Sales Service
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, if you have any questions, you can contact us any time, 24x7, we always here.

---
