Good Quality High-Speed Tricot Warp Knitting Machine for Velvet Curtain

Product Description

Product Description
Good quality high-speed tricot warp knitting machine for velvet curtains is widely used for producing stretch and non-stretch fabrics. The popular width of this machine is 186";218" and 290".
Tricot machines equipped with three guide bars are flexible production machines. Equipped with carbon bars, the machine can run at high speeds around 1800-2300RPM
APPLICATION: To produce toys plush, super soft short plush, yoga fabrics, decorative fabrics, sportswear, shoe fabrics, mesh fabric, etc.

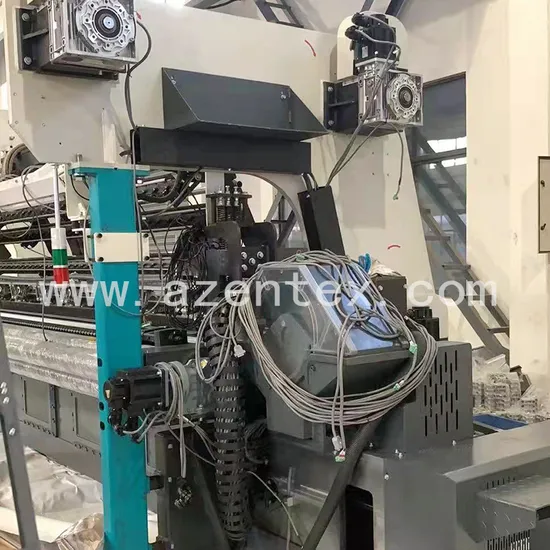

Detailed Photos

1. Working Width/Gauge	186", 218", 245", 290"/E28, E32, E36;
2. Working Speed	50-1900 rpm (Depends on Yarn and Designs);
3. Bars/Knitting Elements	Individual Needle Bar with Compound Needles, Tongue Needles, 3 Guide Bars. All Bars and Beds are Made of Carbon-fiber-reinforced Material;
4. Pattern Drive System	Pattern Discs Drive or EL Drive (Optional);
5. Yarn Let-off Device	EBC Yarn Let-off System;
6. Fabric Take-up	Electronic Fabric Take-up System;
7. Batching Device	Electronical Batching Device;
8. Laser Stop Detector and Online Service Program Equipped;
9. Air Blower Device	Equipped.

Application

Our Advantages
In-house Sampling Production

In order to test our double needle bar raschel machines' performance, as well as to adjust machine specifications to fit customers' fabric quality, we provide in-house sampling production before the machine delivery. We analyze fabric structure, make a design sketch, and make a record of the knitting process. Our customers could have the access to acknowledge our double needle bar raschel machine performance during real production, but also obtain the knitting production data which is helpful during their mass production.
Local Engineers Installation & Training

We build up serval overseas technical service teams in India, Turkey, Indonesia, Pakistan, Iran, and Egypt. Those well-trained engineers have rich skills and experience for the double needle bar raschel machines installation and production. Our service includes Warping Machine installation, Double-needle Bar Raschel Machines installation, Tricot Machines installation, and Tricot Terry Warp Knitting Machines installation. What's more, our overseas engineers could provide warp knitting basic knowledge and maintenance training for our double needle bar raschel machines. Customers could contact A-ZEN China or A-ZEN overseas office to get this service.
Online Support

All A-ZEN double needle bar raschel machines are equipped with an online service program, and thanks to this, a faster and more accurate service become available. Online Support refers to running faults rectification and machine system checks and protection. So far, we have many successful online support service stories in Turkey, India, Pakistan, and other places, and our customers enjoy a pleasant service that enables their double needle bar raschel machines to be productive.


Routine Maintenance

We send notifications to our double needle bar raschel machine users regularly, especially after the machine works more than two years. Routine maintenance notification plays a vital role when the machine is under poor maintenance conditions. We hope our routine maintenance service could largely avoid production loss because of the inefficient maintenance of the double needle bar raschel machines.

---
