| Main parameters | ||||

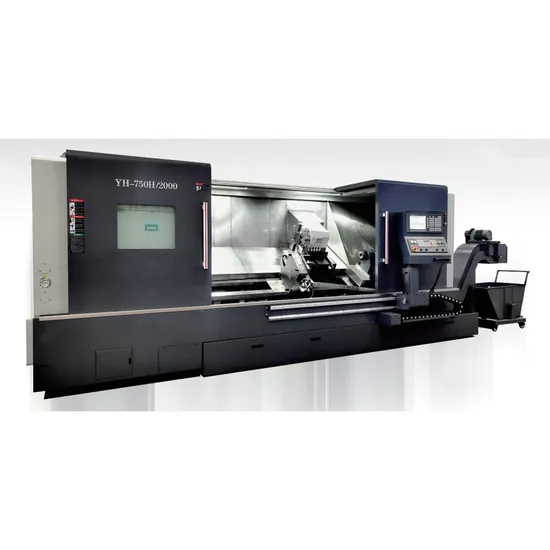

| Item | YH-750H | YH-750HM | ||
| Main parameters | Turning diameter on the bed surface | φ730 mm | φ730 mm | |
| Max. machining diameter | φ630mm | φ560mm | ||
| Machining diameter on the slide | φ450mm | φ440mm | ||
| Max. machining length | 740/1020/1640/2240 | 630/930/1530/2130 | ||
| Spindle and chuck parameters | Spindle head form | A2-8(10") optional A 211(12") | A2-8 optional A 211(12") | |
| Spindle motor power | 22KW | 22KW | ||
| Max. spindle speed | 2800rpm | 2800rpm | ||
| Spindle bore diameter | φ87mm | φ87mm | ||
| Bar through-hole diameter | φ75mm | φ75mm | ||
| Feed part parameters | X/Z axis screw spec. | 4008/5010 | 4008/5010 | |
| X-axis limit stroke | 325mm | 325mm | ||
| X and Z axis motor torque | 30N.M | 30N.M | ||
| Z-axis limit stroke | 760/1100/1700/2300 | 760/1100/1700/2300 | ||
| X and Z axis connection method | Direct connect | Direct connect | ||
| Accuracy | Machining accuracy | IT6 | IT6 | |
| Repeatpositioning accuracy | 0.003mm | 0.003mm | ||
| Servo turret | Servo turret | NC125-V12-440 | BMT65-V12/ER32/4000rpm | |
| Turret center height dimensions | 125 | 125 | ||
| Tool size | 25 × 25 | 25 × 25 | ||
| Boring tool holder dimensions | 40mm | 40mm | ||
| Tailstock part | Sleeve diameter | 100mm | 100mm | |
| Sleeve stroke | 80mm | 80mm | ||
| Max. tailstock stroke | 785/1085/1685/2285 | 785/1085/1685/2285 | ||
| Tapered bore of tailstock sleeve | Mohs 5# | Mohs 5# | ||
| Shape | Bed form and slope (L×WxH) | Integral /30° 4200×1900×1850 | Integral/30° 4200×1900×1850 | |
| Weight | Weight (approx. weight)T | 7.5/8.5/10.5/12.5T | 8/9/11/13T | |
| Systems available: FANUC, MITSUBISHI, SIEMENS, GSK | ||||
