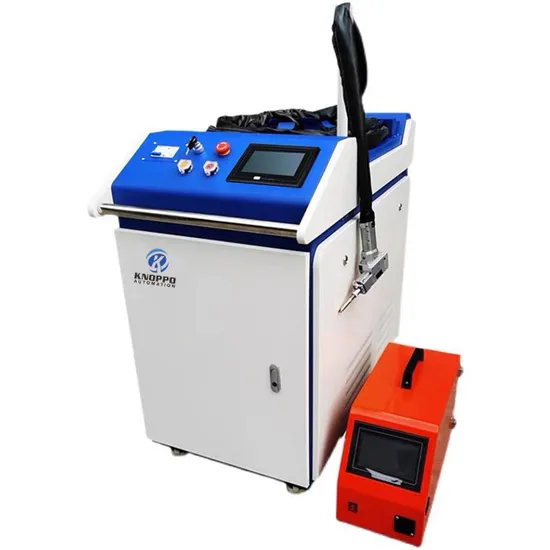

Good Quality 4-in-1 Fiber Laser Welding Machine 1000W for Metal Stainless Steel Aluminum with Max Laser Source Brand

Product Description

Application
*Sheet metal processing * Food machinery
*Railway transportation * Textile machinery
*Automobiles * Tools Processing
*Construction machinery * Petroleum machinery
*Agricultural and forestry machinery * Kitchen and bathroom
*Electrical manufacturing * Decorative advertising
*Elevator manufacturing * Laser external processing service
*Household appliances * Advertising Signs
Product Parameters

No.	Model	YW1000M	YW1500M	YW2000M
I.Laser source		Raycus / MAX	Raycus / MAX	Raycus / MAX
1.	Output Power (w)	1000w	1500w	2000w
2.	Center wavelength	1080nm ±5
3.	Fiber Cable length	8m
II.Water Cooling		1.5P	2P	2.5P
III.Laser head (XINGHONG from Wuhan),standard model. Qilin /WSX (Optional)
1	Spot size (mm)	1.5/1.8/2.0 (XINGHONG)
		0.2-5mm adjustable (Qilin)
		0-4mm adjustable (WSX)
2	Working Mode	"O"(XINGHONG)
		dot/line/circle (Qilin)
		"Z"(WSX)
3	Protective lens	D20*2
4	Auto Wire-feeding	Optional
IV. Gas		N2/Ar
V.Total Power Consumption		7.5KW	8.5KW	10KW
VI.Voltage		220±20% VAC 50/60Hz	380±20% V AC 50/60Hz
VII.Dimension (CM)		62.5*174.6*109	62.5*175.6*124

Advantages
1 . The operation is simple, unexperienced people can also use it quickly.
2. The welding speed is super fast. A handheld laser welding machine can replace the output of 3 to 5 welders.
3 . Welding is without consumables, saving costs in production.
4 . After the welding is completed, the welding seam is smooth and white, without polishing.
5. The laser welding machine has concentrated energy, small heat reflection range, and the product is not easy to deform.
6. The laser welding machine has concentrated energy, and the welding intensity is very high.
7. The energy and power of the laser welding machine are digitally controlled, which can meet various welding requirements, such as complete penetration, penetration, spot welding, and so on.
Recommend Products

Fiber Laser Marking Machine

Fiber Laser Cutting Machine

CO2 Laser Cutting Engraving Machine

After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Packaging & Shipping
Wooden Box Package
Company Profile
Yvchuang Laser is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15, 000 laser cutting systems in the market and a rapidly increasing global base, Yvchuang laser is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age. The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine, laser marking machine etc. With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.

---
