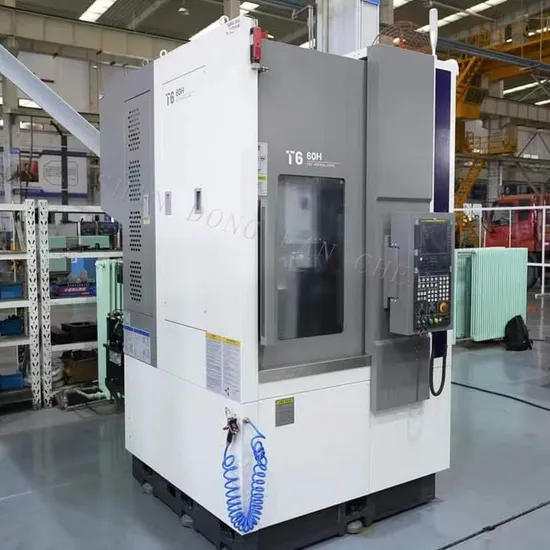

New CNC Vertical Lathe T6-60h with a Rotation Diameter of 700 and a Cutting Diameter of 600

Product Description

T6-H
T6-H series CNC vertical lathe is our new upgraded technology structure of the third generation of new CNC vertical lathe, with excellent rigidity, stability and processing accuracy, supporting imported high-quality functional parts, widely used in new energy, automotive, bearing and other industries processing, to provide customers with excellent experience.

Item	Unit	T6- 60H
Accuracy grade		IT7/IT6 IT7/IT6
Technical parameters
Max.cutting diameter	mm	Φ600 Φ600
Max.swing diameter	mm	Φ700 Φ700
Max.cutting height	mm	650
Spindle
Spindle nose and taper		A2-11 2-11
Standard chuck size	inch	15(Optional18,Optional21) 15(Optional18,Optional 21)
Max.spindle speed	R/min	1100/2500
Max.spindle torque	N/M	1158/1160
Main motor output power continous/30min	KW	18.5/26/22/30
X\Zaxis
X X axis rapid traverse	m/min	18/20
ZZ axis rapid traverse	m/min	18/20
X X axis travel	mm	330
ZZ axis travel	mm	653
Turret
Type		8Horizontal 8 positions servo turret
Center height	mm	125
Turret rotary repeat positioning		±1.6 ±1.6
Positioning
X axis	mm	0.008/0.005
Z axis	mm	0.008/0.005
Machine weight	kg	7500
Machine dimensions	mm	2235×1570×3030 2235×1570×3030

FAQ

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
