as Nzs Sans IEC Standard 0.6/1kv 50mm2 95mm2 120mm2 Copper Aluminium Conductor PVC Insulated Nyy N2xy Armoured Underground Electric Power Cable

Product Description

AS NZS SANS IEC standard 0.6/1kv 50mm2 95mm2 120mm2 Copper Aluminium Conductor PVC Insulated Nyy N2xy armoured underground electric power cable
Cable Selection It is essential that the type of cable ordered is suitable for its intended use. Cable choice will be based on a whole range of factors including installation specifications, relevant local regulations and the performance of appropriate cable types. It is therefore impossible to provide a conclusive guide to cable selection and we would advise you to contact us for our specialist advice on suitable designs to meet you specific cable needs. Cable structure
Conductors Conductors shall be of Copper or Aluminium, circular standed(Non-compacted or Compacted) or Shaped, Class 1 or Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid circular conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request. Insulation XLPE material and thickness shall be as per IEC 60502-1 or BS 5467 rated for 90° C continuous operation. PVC material and thickness shall be as per IEC 60502-1 or BS 6346. PVC insulation Material-PVC/A as per IEC 60502 or TI1 as per BS EN 50363. PVC insulation as per SASO 1694 rated for 85° C continuous operation is also available on request. Assembly Two, Three Four or Five insulated conductors are laid-up together with non-hygroscopic fillers compatible with the insulation material.
Inner sheath
The assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted if the outer shape of the cable remains practically circular. Armour Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346. (Single core cables shall be Aluminium wire armoured)(SWA/AWA)
Double Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502-1.(STA) Outer Sheath Outer sheath will be extruded PVC/ST2 as per IEC 60502-1, Type 9 as per BS 7655. Special type of PVC sheathing material such as fire retardant PVC, anti-termite and anti-rodent PVC, ultraviolet PVC, Oil resistant PVC, etc. Are available on request also other special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE etc are available. Flame Performance of Cable Sheaths Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards. Standard:
IEC,BS,VDE,AS/NZS,ICEA,JIS and so on,designing and manufacturing special power cable according to the other standards required by the customer
Type and Name:

Type	Designation	Applications
VV	Copper conductor, PVC insulated, PVC sheathed power cable	For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces .Single core cable is not allowed to lay in a magnetic duct.
VLV	Aluminum conductor, PVC insulated, PVC sheathed power cable
VY	Copper conductor, PVC insulated, PE sheathed power cable
VLY	Aluminum conductor, PVC insulated, PE sheathed power cable
VV22	Copper conductor, PVC insulated, steel tape armored, PVC sheathed power cable	For laying indoors, in a tunnel in cable trench, or direct in ground, able to bear external mechanical forces. The single-core cable is not allowed to lay in the magnetic duct.
VLV22	Aluminum conductor, PVC insulated, steel tape armored, PVC sheathed power cable
VV23	Copper conductor, PVC insulated, steel tape armored, PE sheathed power cable
VLV23	Aluminum conductor, PVC insulated, steel tape armored, PE sheathed power cable
VV32	Copper conductor, PVC insulated, steel wire armored, PVC sheathed power cable	For laying indoors, in tunnel cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.
VLV32	Aluminum conductor, PVC insulated, steel wire armored, PVC sheathed power cable
VV33	Copper conductor, PVC insulated, steel wire armored, PE sheathed power cable
VLV33	Aluminum conductor, PVC insulated, steel wire armored, PE sheathed power cable

Type and Name:

Type	Designation	Applications
YJV	Copper conductor, XLPE insulated, PVC sheathed power cable	For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces .Single core cable is not allowed to lay in a magnetic duct.

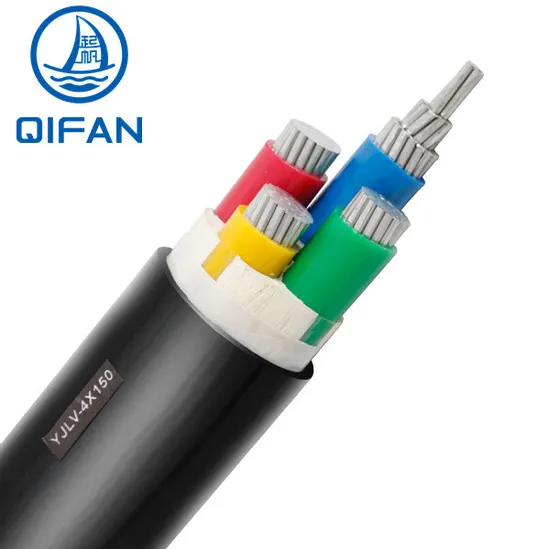

YJLV	Aluminum conductor,XLPE insulated, PVC sheathed power cable
YJY	Copper conductor, XLPE insulated, PE sheathed power cable
YJJLY	Aluminum conductor, XLPE insulated, PE sheathed power cable
YJV22	Copper conductor,XLPE insulated, steel tape armored, PVC sheathed power cable	For laying indoors, in a tunnel in cable trench, or direct in ground, able to bear external mechanical forces. The single-core cable is not allowed to lay in the magnetic duct.
YJLV22	Aluminum conductor, XLPE insulated, steel tape armored, PVC sheathed power cable
YJV23	Copper conductor, XLPE insulated, steel tape armored, PE sheathed power cable
YJLV23	Aluminum conductor, XLPE insulated, steel tape armored, PE sheathed power cable
YJV32	Copper conductor, XLPE insulated, steel wire armored, PVC sheathed power cable	For laying indoors, in tunnel cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.
YJLV32	Aluminum conductor, XLPE insulated, steel wire armored, PVC sheathed power cable
YJV33	Copper conductor, XLPE insulated, steel wire armored, PE sheathed power cable
YJLV33	Aluminum conductor, XLPE insulated, steel wire armored, PE sheathed power cable

Cable Technical data sheet

No. x mm2	Phase		Neutral/Earth		Inner sheath	Armored	Outer sheath		Weight of Cable
	Diameter of conductor mm	Thickness of XLPE mm	Diameter of conductor mm	Thickness of XLPE mm	Thickness mm	Diameter of wire mm	Thickness of Sheath mm	Complete Diameter mm	YJV32(CU) kg/km	YJLV32(AL) kg/km
4*1.5	1.38	0.7	-	-	1	0.8	1.8	14.3	391.3	353.7
4*2.5	1.78	0.7	-	-	1	0.8	1.8	15.3	459.7	397.2
4*4	2.25	0.7	-	-	1	0.8	1.8	16.4	551.7	451.8
4*6	2.76	0.7	-	-	1	1.25	1.8	18.6	800.7	650.4
4*10	4	0.7	-	-	1	1.25	1.8	21.6	1089.3	837.6
4*16	5.1	0.7	-	-	1	1.6	1.8	24.9	1543	1151.1
4*25	6.3	0.9	-	-	1	1.6	1.8	28.8	2094.7	1481.8
4*35	6.2	0.9	-	-	1	1.6	1.9	27	2386	1531.9
4*50	7.6	1	-	-	1	1.6	2	30.7	3014.1	1858.5
4*70	8.8	1.1	-	-	1.2	2	2.2	35.4	4298.9	2603.3
4*95	10.5	1.1	-	-	1.2	2	2.3	39.3	5480.4	3149.3
4*120	11.2	1.2	-	-	1.4	2.5	2.5	43.1	6972.2	4033.1
4*150	13	1.4	-	-	1.4	2.5	2.6	48.2	8452.2	4784.6
4*185	14.5	1.6	-	-	1.6	2.5	2.8	53.1	10276.8	5704.9
4*240	16.2	1.7	-	-	1.6	2.5	3	57.7	12650.1	6721.6
4*300	19	1.8	-	-	1.6	2.5	3.2	64.7	15397.1	7986.5
3*2.5+1*1.5	1.78	0.7	1.38	0.7	1	0.8	1.8	15.1	442.9	386.6
3*4+1*2.5	2.25	0.7	1.78	0.7	1	0.8	1.8	16.1	527.8	437.3
3*6+1*4	2.76	0.7	2.25	0.7	1	1.25	1.8	18.3	776.2	638.6
3*10+1*6	4	0.7	2.76	0.7	1	1.25	1.8	20.8	1014	787.7
3*16+1*10	5.1	0.7	4	0.7	1	1.25	1.8	23.6	1322.2	965.4
3*25+1*16	6.3	0.9	5.1	0.7	1	1.6	1.8	27.8	1953.6	1395.9
3*35+1*16	6.7	0.9	5.1	0.7	1	1.6	1.8	28.8	2295.1	1556.6
3*50+1*25	7.4	1	6.3	0.9	1	1.6	1.9	31.1	2847.6	1827.7
3*70+1*35	8.7	1.1	7	0.9	1.2	2	2.1	36.2	4015.5	2530.3
3*95+1*50	10.5	1.1	8.2	1	1.2	2	2.2	40.5	5076.7	3039.4
3*120+1*70	11.6	1.2	10	1.1	1.2	2	2.4	43.9	6227.1	3598.8
3*150+1*70	13	1.4	10	1.1	1.4	2.5	2.5	49.7	7816.5	4641.9
3*185+1*95	14.5	1.6	11.6	1.1	1.4	2.5	2.7	54.5	9503.8	5492.1
3*240+1*120	16.5	1.7	13	1.2	1.6	2.5	2.9	60.4	11746.4	6565.3
3*300+1*150	18.8	1.8	14.6	1.4	1.6	2.5	3	66.3	14126	7651.2
3*2.5+2*1.5	1.78	0.7	1.38	0.7	1	0.8	1.8	15.8	484.5	418.8
3*4+2*2.5	2.25	0.7	1.78	0.7	1	1.25	1.8	17.8	702.1	596
3*6+2*4	2.76	0.7	2.25	0.7	1	1.25	1.8	19.2	853.3	690.7
3*10+2*6	4	0.7	2.76	0.7	1	1.25	1.8	21.7	1110	846.1
3*16+2*10	5.1	0.7	4	0.7	1	1.6	1.8	25.6	1635.8	1216.1
3*25+2*16	6.3	0.9	5.1	0.7	1	1.6	1.8	29.3	2182.1	1526.4
3*35+2*16	6.5	0.9	5.1	0.7	1	1.6	1.8	29.1	2453.2	1616.7
3*50+2*25	7.4	1	6.3	0.9	1	1.6	2	32.2	3125.6	1952.5
3*70+2*35	9	1.1	7	0.9	1.2	2	2.1	37.9	4482.4	2783.7
3*95+2*50	10.7	1.1	8.2	1	1.2	2	2.3	42.4	5679.2	3353.1
3*120+2*70	12	1.2	10	1.1	1.4	2.5	2.5	47.8	7499.7	4447.5
3*150+2*70	13.4	1.4	10	1.1	1.4	2.5	2.6	52.3	8649.7	5051.2
3*185+2*95	15	1.6	11.6	1.1	1.6	2.5	2.8	57.9	10681.1	6086.6
3*240+2*120	17	1.7	13	1.2	1.6	2.5	3	63.6	13074.7	7158.8
3*300+2*150	19.2	1.8	14.6	1.4	1.6	2.5	3.2	69.7	15769.3	8377.6

Note:
Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346.
Single core cables shall be Aluminium wire armoured)
------Our Feature------ Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.

---
