4lz-1.6z Mini Combiner Harvester with Ce Certificate

Product Description

Product Description

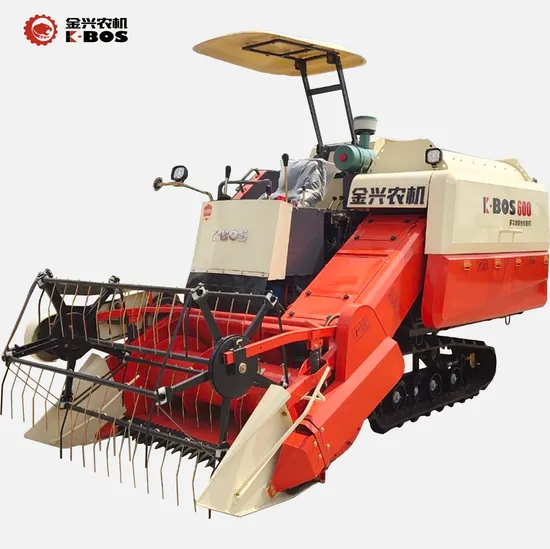

Model 4LZ-1.6Z is the first multi-functional small longitudinal axial flow combine harvester in China.
Equipments: Four Cylinder diesel engine,Power range from 45HP to 60HP. 50 Gearbox, 28CC HST, 400mm Width Rubber, With Reverse Device for Conveying transmission, Low consumption,Light weight,easy -maintenance
Multi-functional : Rice, Wheat, Soybean, Maize,Rapeseeds, and other granular crops.
High Efficiency:Strong Power,Flexible Walking,High capacity. Theoretical harvest speed 0.4-0.5ha as fast as the double thresher type with 2Meter harvester. 6-7 times fast more than the Hand-held mini harvester
Adaptability: Specially design for Hilly area,Small field, the light weight 1850kg offer our machine a low ground pressure and lower fuel consuption of 16 Litre per hectare.

This machine is easy for operation and maintence, it is a safety and energy-saving machine.
SPECIFICATION

Specification:
Product Model			4LZ-1.6Z Combine Harvester
Overall Dimension Length×Width×Heights ( mm ):			4300×1980×2675
Weight (kg)			2410
Productivity of Operating Hours(hm²/h):			0.05~0.48
Engine	Engine Model		4B2-60U32
	Rated Power ( kw/hp )		44.2KW/60HP,51KW/70HP
	Engine Type		Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel.
	Rated Rotation Speed (r/min)		2400
Traveling System	Type of Gearbox:		HST X (3F, 3R) Hydraulic type + HST(3F, 3R)
	Rubber Track(mm):		400 x 90 x 46
	Gauge		920
	Minimum Ground Clearance (mm)		280
Cutting header	Height Adjustment		Hydaulics.
	Cutting Width ( mm )		1550
	Header auger type		Telescopic Screw Conveying
	Pickup Reel		D800mm; Qty 5 Eccentric Tooth(off-centre)
Threshing System	Threshing System		Spiked Tooth Axial Flow
	Threshing Cylinder Quantity		1
	Cylinder Diameter×Length ( mm )		φ540 x 1521
	Cleaning Mechanism Type		Air and Screen Cleaning, Vibrating Sieve adjustable
Grain Storing	Automatic Unloading		950L 360° / 90° Big Grain Tank Capacity 950L with 360° / 90°Unloading Auger
	Manual Operation		350L Small Tank Capacity 400L by Manpower

---
