12L 15L 18L HDPE PP Big Large Bottle Making Blow Molding Machine

Product Description

PXB70A
12L - 20L Blow Molding Machine

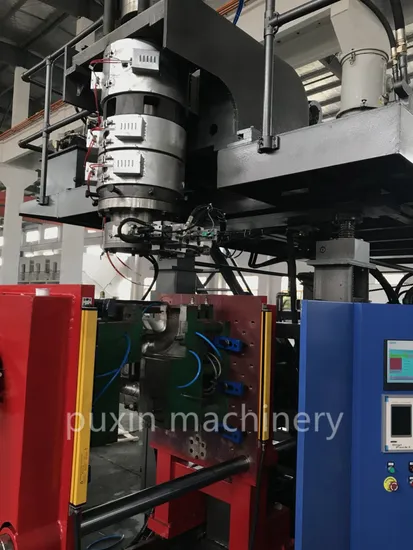

- Fixed station & Accumulator head
- Perfect usage for toys, auto parts, high pressure sprayer, etc.
- Fast start-up speed, energy saving.
- Optional internal thread rotary bottom blow system.
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	SETTIMA	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	DMASS	German
Air valve	FESTO	German
Parison control	MOOG	Japan

Parameters

Specifications
Material		PE,PP, ABS...
Max container capacity	L	20
Output(dry cycle)	Pc/hr	700
Machine Dimension(LxWxH)	M	4.3x1.7x3.9
Total weight	T	7.8
Clamping Unit
Clamping force	KN	130
Platen opening stroke	mm	300-850
Platen size	mm	680*600
Max mould size(WxH)	mm	460*600
Mould thickness	mm	310-380
Power
Servo oil pump motor power	KW	15
Servo pump displacement	L/Min	80
Cooling Water Pressure	MPA	0.3
Air pressure	MPA	0.8
Air consumption	M3/min	0.7
Average energy consumption	KW	18-22
Extruder unit
Screw diameter	mm	70
Screw L/D ratio	L/D	24
Melting capacity	Kg/hr	80
Number of heating zone	zone	3
Extruder heating power	KW	12.6
Extruder driving power	KW	22
Die
Number of heating zone	zone	5
Power of die heating	KW	20
Max die-pin diameter	mm	200
Accumulator capacity	L	3

Delivery Time:
- No later than 50 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
