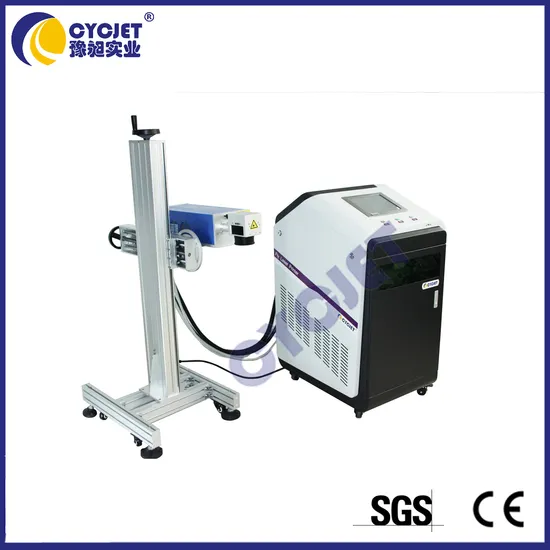

Cycjet 03W 05W 10W UV Laser Marking Machine on Plastic Pipe and Fitting

Product Description

Application Scope:
Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage: 1, Perfect design software, easy to learn and operation2, Less Mechanical Faliure3, Operation Status: Fly and Standstill4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter. 5, The code can not move or erase it6, No consumer goods, less production cost Terms Of Payment: T/T, LC After-sale Service 1, Warranty Valid: 18 Month2, Online or Spot Training
Details and Specifications:

PERFORMANCE		Frame Material	ALUM.
		Laser Device	UV Laser Device
		Power	≥3W
		Laser Wavelength	355 nm
		Galvanometer deflection	High Precision dual dimensional scanning system
		Marking speed	≤12000mm/s
		Master Control	Highly integrated board with 10 inch Color Touch screen
		Operating System	LINUX based with High Speed Pipe Marking Software
		Cooling	Water Cooling System
Marking Specifications		Focus Distance	Focus 190mm
		Marking line type	Dot matrix, bold, vector all in one(both dot matrix and vector)
		Minimum line width	0.01mm
		Repeatability accurate positioning	0.003mm
		Marking Area	Standard 110mm×110mm(Customized available)
		Marking height	Standard Character height 110mm
		Marking Length	Unlimited
		Positioning mode	Red light positioning and focusing
		Number of characters	Any line(multi-line) within marking range
		Line Speed	Standard 0~230m/min (depends on material &text)
Support type		Typeface	Chinese , English, available to customized
		Marking	Number, logo, image, letter, serials number, system date & time,etc...
		File format	CNF/PLT
		Bar code	CODE39,CODE128,CODE126,QR,Z-Code
Others		Power Supply	100-220V/50-60HZ
		Power Consumption	800W
		Net Weight	88kg
		Oversize	140cm X 135cm X 75cm
Environmental Requirement			0ºC-45ºC; humidity≤95%; non-condensing; no shaking
The Quality Standard of CYCJET UV Laser Marking Machine
GB 7247-87	Radiation safety of laser products, requirements for equipment classification and user's Guide
GB10320-88	Electrical safety of laser equipment and facilities
ISO 9000-3	International software standards
GB/T12123-89	Sales packaging process
IEC 536	Classification of electrical and electronic equipment for protection against electric shock

---
