HDPE Drum/ PE Frame/ PE Block/ PE Can/ PE Bottle Crushing Washing Recycling Production Line

Product Description

Product Description

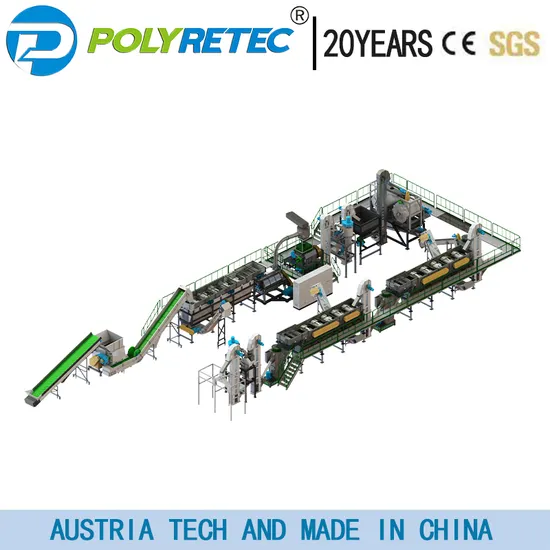

HDPE bottle washing recycling line
Name: HDPE bottle washing recycling line
Raw materials: HDPE waste plastics
01 - Features


The HDPE washing recycling system is used to treat all kinds of HDPE waste plastics. The processed HDPE can be used to produce plastic granules and make plastic products. HDPE plastics are mainly used to produce various packaging materials, well known as bottles and barrels. Generally, large-size HDPE materials need to be shredded first, and small-size HDPE materials can be crushed directly. The different application places of HDPE materials determine different impurity residues, and we can design and adjust the corresponding plant according to other impurity residues. The HDPE washing recycling line is suitable for the recycling of PP materials of similar size.
02 - Recycling Effect Display








Detailed Photos

04 - Technical Features

It is suitable for recycling plastic products with high toughness and thickness between 1-25 mm. Circulating water is used to ensure the cleaning effect while controlling water consumption. The crushing system adopts a wear-resistant design to ensure the long-term continuous operation of the system. The high-speed centrifugal washing system applies the corresponding blade striking force to different materials at the most suitable rotation speed to achieve the best cleaning effect. Substantial pressure underwater washing to remove residual impurities to the greatest extent Centrifugal de-watering and hot air drying system can be equipped according to the moisture content set by production requirements After theoretical calculations and multiple actual measurements, the details of the mechanical operation of the crushing, washing, and drying parts are adjusted to avoid material loss due to excessive processing. The whole line is automatically controlled, and the units of the system are operated in association with each other, which maximizes the production capacity and has a predictive function for possible abnormal situations to ensure the safety of the system to the greatest. ate, and degree of automation. In recent years, by actively absorbing Europe's valuable experience in film (PE) and woven bag (PP) recycling, and combined with our company's many years of waste plastic recycling experience, we Manufactured updated PP/PE floating washing line to realize efficient coarse crushing, fine crushing, washing and discharging, dehydration and semi-plasticization






05 - Project parameters

Model	Capacity	Installation power	Space	steam	compressed air	Water
PEPP500	500kg/h	98kw	250m2	*	0.5m3	2m3
PEPP1000	1000kg/h	150kw	400m2	*	0.5m3	2m3
PEPP2000	2000kg/h	230kw	700m2	*	0.5m3	3m3

06 - Unit consumption

No.	Name	Consumption/ton	Serial number	Name	Consumption /ton
1.	electricity	50-80kw	3.	Clean agent (option)	2-4kg
2.	Steam (Option)	100-200kg	4.	Water	0.8-1.5T
