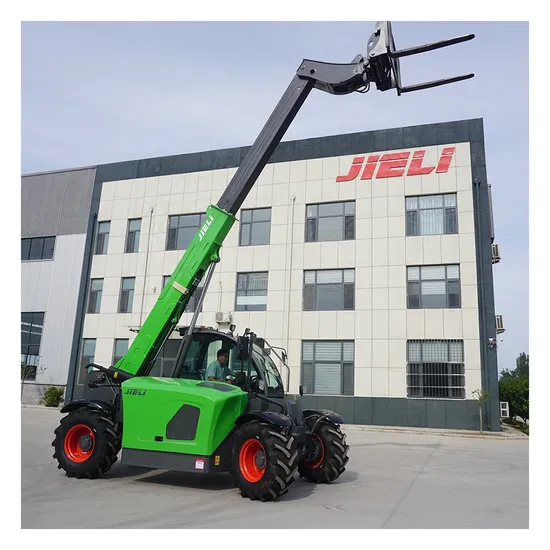

Rigid Flexible Convenient Telescopic Arm Load Forklift Truck Telehandler with Fork Bucket

Product Description

Customize engine durable Telescopic Boom telehandler
with hydraulic fork/bucket/lifting hook/CE EPA
Product Parameters

Performance	rated loading (kg)	3000
	overall weight (kg)	7000
	rated bucket capacity (CBM)	1.1
	maximum tractive force (kN)	45
	maximum breakout force (kN)	35
	maximum grade ability(°)	35
	most lift height(mm)	7000
	maximum dump height(mm)	6000
	maximum dump height(mm)	3500
	maximum dump reach(mm)
	overall dimension (L×W×H) (mm)	5650*2180*2470
	minimum turning radius (outside of wheels)(mm)	3800
Engine	model	CHANGCHAI 4G33 /YUNNEI EURO V/YAMMAR EURO V/CUMMINS EPA 4
	type	lnline water cooled, four stroke
Transmission system	torque converter	280
	gearbox mode	Power shift normally engaged straight gear
	gear shift	Mechanical , 2forward shift 2 reverse shift and another more high speed
	maximum speed	40km/h
Drive axles	main reducing mode	Bevel gear grade l reduction
	wheel base (mm)	3100
	wheel tread(mm)	1780
	ground clearance(mm)	330
Hydraulic system	system working pressure (Mpa)	20
	boom lifting time (s)	6.4
	total time (s)	11.5
	fuel tank capacity (L)	120
Brake system	service brake	hydraulic brake, disc brake
	parking brake	Manual disc brake
Tyre	type specification	16/70-20
	front tyre pressure (kPa)	350
	rear tyre pressure (kPa)	350

Product advantage
1.The machine structure is compact, flexible operation, stable lifting, automatic leveling, high net load index, accurate fork transport;
2.The machine uses a Cummins engine, low noise, low emissions, strong power, large torque reserve;
3.The full hydraulic braking system makes the braking stable and reliable, and it can ensure the safety of driving;
4.The torque limit system can meet the needs of extreme working conditions to ensure the safety of operation.
5.variety of power memory options, energy-saving shock
6.Low noise, small vibration, energy saving and environmental protection
7.The smaller front suspension design service life of front tires and drive axle
Product Picture
Auxiliary Tools

Optional Equipment	Optional Attachment
Tyre Chain	4-in-1 Bucket
Snow Tyre	Pallet Fork/Hydraulic Adjustable Pallet Fork
Air Condition	Grapple Grass/Wood Forks
E4 LED Light	Grapple Bucket
	Snow Bucket
	Hydraulic Snow Blade
	Sweeper
	Snow Blower
	Twist Drill
	Breaker
	Sand Spreader
	Barrel Clamp

Various Accessories Photos
Our Exhibition
Company Profile
Qingzhou Jieli Machinery Co., Ltd. is a factory, whih have more than 9 years wheel loader exporting experience. We started to produce wheel loaders ourselves under the help of our European customs. Most of our wheel loaders are designed on the basis of European customers suggestion. Now our products can be found working all over the world. We have agents in parts Europe countries, choose us will bring the surprise.

---
