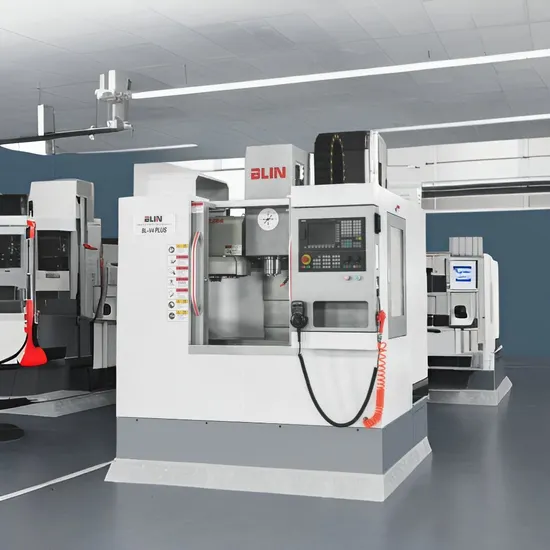

4 Axis 5 Axis Mini CNC Milling Machine Price for Sale (BL-V4 PLUS)

Product Description

4 axis 5 axis mini cnc milling machine price for sale(BL-V4 PLUS)
-3 axes adopt high precision linear guideway
-Designed by GERMAN engineer
-Whole production process accord to TAIWANESE standard
-Chips outlet set at the back of machine
-Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
-High speed, high precision, long using lifespan
-Adopt HT300 high class cast iron,after aging treatment and FEA analysis
-Bridge shape column, high rigidity, high stability
-3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching,pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:

Item	Specification	Unit	BL-V4 PLUS
Worktable	Table size	mm	800×320
	Table max. loading	kg	200
	T slot(NO./width/gap)	mm	3/14/100
Travel	X/Y/Z axes	mm	450/300/480
Spindle	Distance from spindle nose to table surface	mm	105~585
	Distance from spindle center to column surface	mm	375
	Spindle type	mm	BT40/Φ120 7:24
	Spindle motor	kw	3.7(option:5.5kw)
	Spindle speed	rpm	Belt-drive: 8000/10000 Direct-drive: 12000
Feeding axes	X,Y,Z axes ball screw O.D./pitch	mm	32/12
	X,Y,Z axes linear guideway width	mm	30
	X/Y/Z axes motor	Nm	6/6/11(SIEMENS 808D)
	Cutting feed speed	m/min	12
	X/Y/Z axes rapid moving speed	m/min	36/36/24
	Positioning precision	mm	±0.005
	Repeatable positioning precision	mm	±0.003
Tool magazine	Tool magazine	/	Umbrella type 12T/Arm type 16T
	Max. tool weight	kg	8(Arm type 16T)
	Max. tool length	mm	220(Arm type 16T)
	Max. tool dia.(fully loaded)	mm	78(Arm type 16T)
	Max. tool dia.(no adjacent)	mm	120(Arm type 16T)
Others	Overall dimension(L×W×H)	mm	1830×1870×2120
	Weight	kg	2400

Main parts list:

Item	Brand
Spindle bearing	JAPAN-NSK
Ball screw bearing	TAIWAN-TPI
Ball screw	JAPAN-THK/TAIWAN-HIWIN
Linear guideway	JAPAN-THK/TAIWAN-HIWIN
Spindle unit	TAIWAN-VYU CHEN
Tool magazine	TAIWAN-OKADA
Booster cylinder	TAIWAN-HAO CHENG
Lubrication pump	TAIWAN-BEISUN
Power switch	TAIWAN-MEANWELL
Pneumatic parts	TAIWAN-AIRTAC
Electric parts	FRANCE-SCHNEIDER

Standard configuration: - SIEMENS 808D ADVANCED CNC Controller
-12T Umbrella type tool magazine
Optional configuration: -SIEMENS 828D/FANUC 0I MF CNC Controller
-16T Arm type tool magazine
-4th axes rotary table
