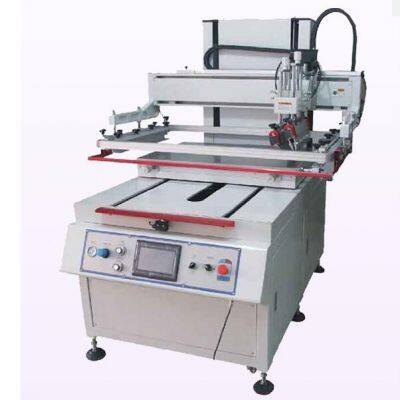

Vertical servo-driven precision screen printing machine with T-slot & vacuum shuttle table

Product Details

Product Description

Product Description
Product DescriptionVertical servo-driven precision screen printing machine with T-slot & vacuum shuttle table
PLC not single-chip control

No	Item	Data
1	Model	TM-P-3050
2	Work table size	400*600mm
3	L-R print	Servo motor drive
4	UP/DOWN	Normal Motor drive
5	Sliding	Normal Motor drive
6	Voltage	AC220V / 1P
7	Speed	600-800 Cycles/hr
8	Dimension	L70*W80*H165cm
9	N.W	400KGS

Printing color
1 color
Keep moving
Can
Speed adjustment
Can
Single cycle
Can
Item count
Can
Delay in each part
Can
Printing speed
650 times/hour
Maximum printing area
400mmX600mm
Screen frame. Up and down stroke
200mm
Workbench treadmill stroke
500mm
drive
Motor
Control voltage.
12VDC
Connected load
1.2KW
Pneumatic supply
6bar
Largest screen frame
600mm*900mm
Workpiece height
80mm
Left and right stroke of scraper
600mm
Scraper, oil scraper up and down stroke
20mm
Control System
PLC
voltage
220VAC 50/60Hz
Suction fan
850W
weight
About 350Kg
Body size
1360mm X 1150mm X1 750mm
Payment Terms︰ TT/LC

---
