Cq6230A Lathe Machinery Precision Hobby Bench Small Mini Metal Lathe

Product Description

CQ6230A Lathe Machinery Precision Hobby Bench Small Mini Metal Lathe

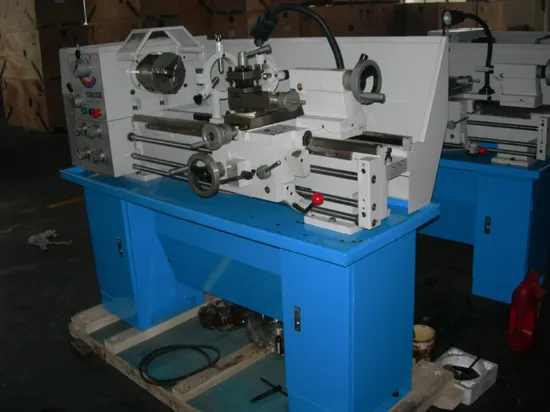

Product picture:
Product Features:
1.Precision ground and supersonic frequency hardened bed ways.
2·The spindle is supported with precision roller bearing.
3·Strong power motor suited for heavy duty cutting.
Mini Metal Lathe Accessories:

Standard accessories:	Optional accessories:
·3 Jaw chuck(Φ160mm)	·4 Jaw chuck(Φ200mm)
·Change Gears Set	·Face Plate
·M.T.#3 Dead Centers	·Steady Rest
·M.T.#5/3 Reduction Sleeve	·Follow Rest
·Oil gun	·Work Light
·Splash Guard	·Foot Brake System
·Foot stands	·Coolant System
·Tool Box&Tools	·Live Center
·Oil Tray	·Drill Chuck+Drill Arbor
	·Leadscrew Guard
	·Chuck Guard
	·Localizer
	·Clutch For Feed Rod
	·Quick Change Tool Post
	·Digital Readout(2 Axis)

Mini Metal Lathe Technical Parameters:

Model	Unit	CQ6230A
Max.swing over bed	mm	Φ310
Max.swing over cross slide	mm	Φ180
Max. swing over gap	mm	Φ450
Distance between centers	mm	750mm/910
Width of bed	mm	181
Spindle bore	mm	Φ38
Taper of spindle bore		M.T.#5
Range of spindle speeds	rpm	65-1810(1400)
Taper of tailstock		M.T.#3
Metric threads can be cut	mm	0.4-7
Inch threads can be cut		4-60 T.P.I.
Range of longitudinal feeds	Mm/rev	0.0527-1.2912
Range of cross feeds	Mm/rev	0.011-0.27
Max. travel of cross slide	mm	130
Max. travel of top slide	mm	75
Max. travel of tailstock quill		100
Motor power	Kw/Hp	1.1.3/1.5.1
Machine size	mm	1700×750×1400
GW	kg	650

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Mini Metal Lathe Details:
Mini Metal Lathe In the Workshop:
Company and Certification Information:
Shandong Schuler CNC Machinery Co., Ltd. is a professional manufacturer of vertical machining center, high speed machining center, gantry machining center, vertical milling machine, universal milling machine, turret milling machine, lathe, CNC lathe, radial rocker drill, metal band sawing machine. enterprise. The company is located in Tengzhou City, Shandong Province, with convenient transportation and industrial intensive. The company integrates research, development, design, manufacturing, sales, installation and maintenance of CNC machine tools. With high-level production equipment technology and excellent, high-quality staff, providing high-quality product quality and service, the products sell well in domestic and foreign markets.
Zhongzheng is a person, and integrity is the foundation. It is the aim of Schuler people. It is consistent with the words and deeds, and it is always the commitment of Schuler people to our customers.
Schuler is willing to cooperate with every customer and peers to win the best for the development of CNC machinery industry. We will return the society with professional and perfect technical support services.
The company's main products include CNC machining center, industrial CNC milling machine and gantry machining center. , metal band sawing machine, CNC lathe, universal turret milling machine, ordinary milling machine, punching machine and other products, customers are welcome to contact us, we will provide you with quality products and satisfactory service.
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Edwin
Tel:+86 18663288651

---
