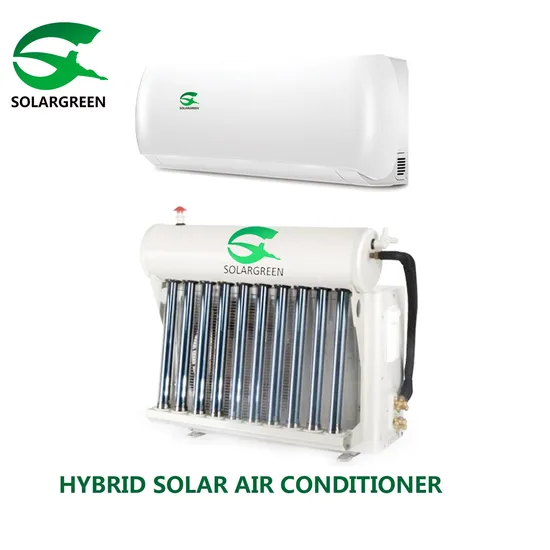

High Quality Affordable Hybrid Solar Power AC Air Conditioner Price

Product Description

High Quality Affordable Hybrid Solar Power AC Air Conditioner Price

Product Details
When the power on, the compressor start working, it compress the refrigerant from low pressure to high pressure, low temperature to high temperature, then discharge to heat ex-changer of the solar collector,
In sunshine time ,the vacuum tube can absorb the sunshine to heat the water of the water tank, then the hot water will translate the heating to refrigerant by the ex-changer, then help the compressor heat the temperature and increase the pressure of the refrigerant again,so it just need use the small compressor driver the system running, just use the less power to cool or heat the room,to save more energy.

Hybrid solar air-conditioner is driven by electricity and with solar energy as an auxiliary power.The two kinds of energy work complementally in accordance with principles of fluid dynamics. It combines the absorption working system with compression system by using environmental-friendly media in cooling and heating on the basis of traditional air-conditioner technology to achieve energy-saving and environment protection.

Product Introduction
(9000BTU-24000BTU) for Wall Mounted range. Up to 48000btu for Cassette,Ducted, Floor standing,Floor ceiling series. on Grid Working with 50% solar energy Supreme high efficiency rating reach to 4.0 3.Fashion and Elegant Design, LED Display,Quiet Running
4.Vacuum thermal tube solar collector ,with easy installation and affordable cost
5. Toshiba Compressor
6. Blue Coating Heat Ex-changer (Better heat transfer effect)
7.100% Copper Connection Pipes With Insulation
8.Environmental Friendly Gas R410A
Product Parameters

Freon:R410
Power Supply:220-240VAC, 1PH, 50/60Hz
Performance
Capacity	Cooling	Btu/h	9000BTU	11500BTU	12000BTU	18000BTU
		W	2600	3200	3500	5200
	Heating	Btu/h	10000	12000	13000	20000
		W	2900	3500	3800	6000
Noise	Indoor	dB(A)	≤40	≤42	≤42	≤44
	Outdoor	dB(A)	≤50	≤52	≤52	≤54
Air Circulation		m³/h	500	520	550	800
Suitable Area		m²	11~17	13~21	15~23	26~36
EER		W/W	3.84	3.72	3.89	3.83
		Btu/h/w	12.42	12.69	13.27	13.07
Power Consumption
Power Input	Cooling	W	650~770	780~940	800~1025	1100~1300
	Heating	W	650~780	780~950	800~1050	1150~1350
Rated Current	Cooling	A	3.00~3.60	3.55~4.27	3.70~4.80	6.30~7.30
	Heating	A	3.00~3.65	3.55~4.31	3.70~4.90	6.30~7.50
Vacuum Tube	Diameter*Length*Pcs		47*520*10	47*520*10	47*520*10	47*620*11
Flat plate solar collector	WXDXH		1000x550x90	1000x550x90	1000x550x90	1000x550x90
Dimensions
Indoor Unit	Net	mm	775*265*210	775×265×210	775×265×210	985×300×220
	Shipping	mm	840*325*265	840×325×265	840×325×265	1080×380×300
Outdoor Unit	Net	mm	790*260*540	790*260*540	790*260*540	850*300*755
	Shipping	mm	910*370*610	910*370*610	910*370*610	950*410*760
Water Tank	Shipping	mm	910*400*330	910*400*330	910*400*330	980*400*370
Vacuum Tube	Shipping	mm
Flat plate solar collector	Shipping	mm	1100x650x110	1100x650x110	1100x650x110	1100x650x110
Weight
Indoor Unit	Net/Gross	kg	9/10.5	10/11.5	10/11.5	16/17.5
Outdoor Unit	Net/Gross	kg	31/34	36/38	38/40	50/52
Solar Collector	Net/Gross	kg	13/15	13/15	13/15	16/17
Loading Qty	in 20feet	sets	75	75	75	55
	40HQ	sets	175	175	175	125

Freon:R410
Power Supply:220-240VAC, 1PH, 50/60Hz
Performance
Capacity	Cooling	Btu/h	20000BTU	24000BTU	36000BTU
		W	6000	7200	10000
	Heating	Btu/h	22000	27000	40000
		W	6600	7900	11000
Noise	Indoor	dB(A)	≤46	≤50	≤52
	Outdoor	dB(A)	≤56	≤58	≤60
Air Circulation		m³/h	850	1150	1350
Suitable Area		m²	25~42	30~48	40~60
EER		W/W	3.88	3.82	3.82
		Btu/h/w	13.24	13.03	13.03
Power Consumption
Power Input	Cooling	W	1350~1560	1700~1900	2400~2640
	Heating	W	1350~1590	1700~1950	2470~2650
Rated Current	Cooling	A	6.30~7.30	8.00~8.90	10.91~11.95
	Heating	A	6.30~7.50	8.00~8.90	11.23~12.05
Vacuum Tube	Diameter*Length*Pcs		47*620*11	47*620*11	47*620*11
Flat plate solar collector	WXDXH		1000x550x90	1000x550x90	900x500x80
Dimensions
Indoor Unit	Net	mm	985×300×220	985×300×220	1080×320×240
	Shipping	mm	1080×380×300	1080×380×300	1150×420×320
Outdoor Unit	Net	mm	850*300*755	850*300*755	865*310*710
	Shipping	mm	950*410*760	950*410*760	1025*395*790
Water Tank	Shipping	mm	980*400*370	980*400*370	980*400*370
Vacuum Tube	Shipping	mm
Flat plate solar collector	Shipping	mm	1100x650x110	1100x650x110	950x550x90mm
Weight
Indoor Unit	Net/Gross	kg	16/17.5	20/22	23/25
Outdoor Unit	Net/Gross	kg	50/52	55/58	65/70
Solar Collector	Net/Gross	kg	16/17	16/17	16/17
Loading Qty	in 20feet	sets	55	55	50
	40HQ	sets	125	125	115

Product Details Show:
Solar air conditioner projects:
Product Processing
Product Packing

Hot Products
Why Choose Us?
1.Reply your inquiry in 24Hrs
2.Feedback of complaint in 24Hrs
3.OEM/ODM are accepted
4.Exclusive agents in local country are welcomed
5.Providing professional technical advice
6. Supergreen Tech Co.,Ltd, is a professional manufacturer of solar products such as Solar lights, Solar air conditioner, Solar refrigerators, Solar pest control lamp and so on.
With CE certification and several patent technology, making sure that we can provide all of our clients the best user friendly products!

FAQ:
Q1. Can I have a sample order for Solar air conditioner?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 7-20 days, mass production time needs 3-6 weeks.

Q3. Do you have any MOQ limit for air conditioner order?
Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by Sea shipping. It usually takes around 1-2 months

Q5. How to proceed an order for solar air conditioner ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on air conditioner product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
Yes,we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will repair them and resend them to you or provide the new parts to replace and ship with new containers. And we can discuss the solution including re-call according to real situation.
