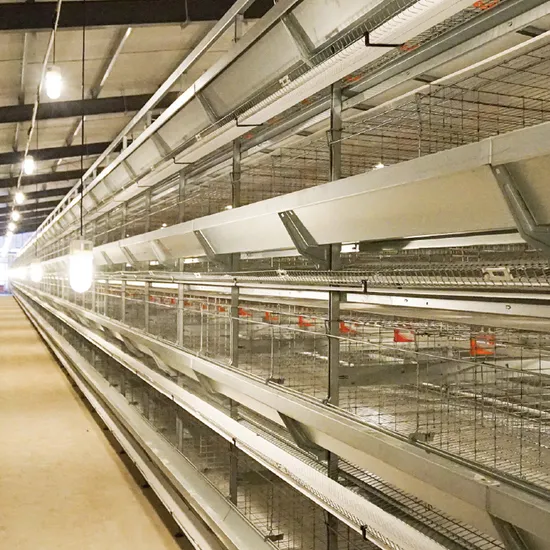

Automatic Battery Layer Cage Egg Chicken House Chicken Cage Poultry Equipment

Product Description

The composition of set layer cage as below,
Cage, A frame, feeding through, feeder connector, water tank(or water pressure regulator), filter, water pipe, connectors, nipple drinker and so on.
1.A Type Egg Chicken Cages can be designed both open and close house.
2.It is more suitable to be used in tropical zone such as Africa,Southeast Asia and South Asia Countries. 3.Ventilation performance is better than H type.
4.Economical and practical.

Parameter	size
Heighter/tier	640/700 mm
Unit depth	500/600/650 mm
Unit width	603 mm
Unit door height	234 mm
Unit front door height	460/520 mm
Unit rear height	390/450 mm
Bottom mesh size	3618 sqcm
Number of birds/unit	8/9 birds/cage
Space/bird	452/430/405 sqcm
Cage width	1200 mm
System width	1550 mm

Number of tiers	3	4	5	6	6 with floor	7 with floor	8 with floor
A(mm)	2135	2775	3415	4055	4255	4895	5535
B(mm)					2168	2808	2808

Number of tiers	3	4	5	6	6 with floor	7 with floor	8 with floor
A(mm)	2556	3196	3836	4476	5116	5756	6396
B(mm)					2608	3248	3248

Professional poultry design, our design team will design the chicken house size and the layout according to your plan. Welcome you to come to visit our company, and our cooperation farm. We offer one stop service,including the project design, quality control, installation, after sale service and farming guidance. After sale service and farming guidance. Technical training and full customer support is provided for all clients.

---
