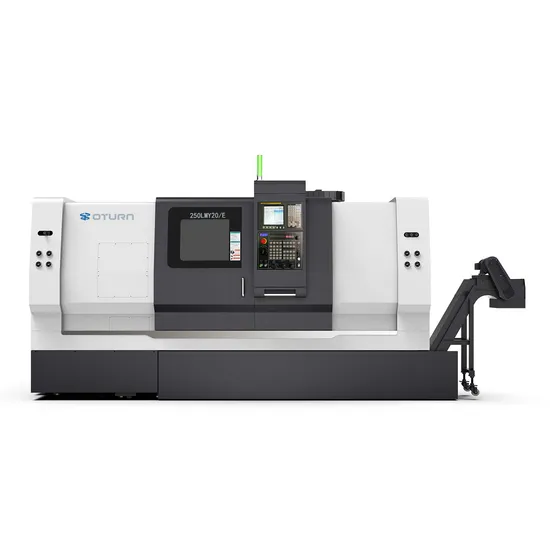

Oturncnc High Precision CNC Lathe Machine with C Axis

Product Description

Product Description
The Precision CNC Lathe Machine with C Axis incorporates an optimized 30-degree inclined bed structure, offering unparalleled precision, superior rigidity, and exceptional cutting stability. Crafted from a single-piece of high-strength HT300 cast iron, the robust lathe bed undergoes finite element analysis to ensure outstanding mechanical rigidity and stability. This guarantees long-term reliable accuracy, enhanced processing stability, and extended tool life. The stress relief treatment further bolsters accuracy stability. Featuring a high-strength hard rail structure, the transmission system employs a screw pre-tension design to significantly enhance rigidity performance.
Equipped with hard rail guides and precision-ground, heat-treated ball screws, the machine tool ensures optimal accuracy and durability. Each axis features a direct transfer axis structure and a double-anchor pre-relay method, minimizing thermal displacement to the lowest possible level and dramatically boosting processing accuracy.
Product Parameters

Item	Unit	TY250LMY20/E
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ540
Max. processing diameter on tool holder	mm	Φ540
Max. processing length	mm	1940
Spindle nose	type	A2-11
Max. Spindle speed	rpm	2500
Cylinder/Chuck	lnch	12″
Spindle bore diameter	mm	Φ117
Bar diameter	mm	Φ102
Spindle motor power	kw	15/18.5
Motor torque220-272 Spindle motor power1:2	Nm	440-544
X/Z axis limit travel	mm	310/2000/120±60
X/Z axis guide rail specifications	/	Hard rail
X/Z axis motor torque	Nm	22/22
X/Z/Y axis motor power	kw	3.0/3.0/1.8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z/Y axis rapid movement	m/min	18/18/8
Powered tool turret type	pcs	BMT65
Power turret power	KW	7.5
Max. speed of driven tool holder	rpm	6000
Outside diameter tool holder specifications	mm	25X25
Inner diameter tool holder specifications	mm	Φ50
Adjacent tool change time	sec	0.2
Hydraulic tailstock	/	Hydraulic tailstock
Max. travel of tailstock	mm	1700
Tailstock sleeve tapered hole	type	Mohs5#
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	80
Machine size	mm	5450*2270*2150
Machine Weight	kg	7900
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40L
Hydraulic oil pump motor power	kw	1.5
Lubricating oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications so we can select the ideal model for you. Alternatively, you can choose a specific model yourself. If you send us the product drawings, we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
We specialize in a variety of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and advanced turning and milling composite processing.
Q3: Where is your factory located? How can I visit there?
We operate 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcomed to visit us.
Q4. How do you transport the machines?
We provide a range of transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are the Payment Terms?
Our payment terms are T/T, with a 30% initial payment upon order and the remaining 70% balance payment before shipment.
Q6: What is the MoQ?
A: The minimum order quantity is 1 set. However, for some low-cost machines, it may be more than 1 set.
We want to know:
1. We strongly suggest providing the size and material of your workpiece for evaluation. If possible, send us the workpiece drawing so we can recommend the most suitable model for you!
2. If you require a CIF price, please kindly provide the port of destination.

---
