Best Price Na2xs (FL) 2y for Fixed Outdoor Installations Cables

Product Description

Best Price NA2XS(FL)2Y for Fixed Outdoor Installations CablesProduct Description
Medium voltage power cables with additional waterblocking properties for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant
Voltage Rating Uo/U (Um)
8.7/15 (17.5) kV
Temperature Rating
-20°C to +60°C
Permissible Conductor Operating Temperature:
+90°C
Permissible Short Circuit Temperature up to 5 sec:
250°C
Minimum Bending Radius
15 x overall diameter
STANDARDS

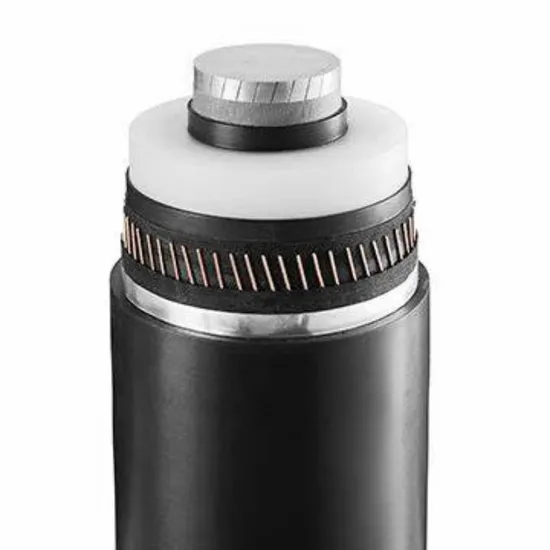

IEC 60502-2Detailed Photos
Conductor
Class 2 Stranded Aluminum
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive material (bonded)
Longitudinal Waterblock
Semi-conductive water swelling tape
Metallic Screen
Copper Wires and Tape
Longitudinal Waterblock
Non-conductive water swelling tape
Radial Waterblocking
Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
Outer Sheath
MDPE (Medium Density Polyethylene)
Sheath Colour
Red Black Product Parameters

Conductor Size	Screen Size	Nominal Diameter of Conductor (MM)	Nominal Insulation Thickness (MM)	Nominal Overall Diameter (MM)	Reference Weight (KG/KM)
50	16	8.1	4.5	28.1	720
70	25	9.7	4.5	29.4	890
95	35	11.4	4.5	31.2	1100
120	50	12.7	4.5	32.4	1330
150	50	14.5	4.5	34.1	1440
185	50	15.9	4.5	35.7	1580
240	50	18.6	4.5	37.8	1780
300	50	20.7	4.5	39.9	1990
400	50	23.5	4.5	42.8	2300
500	50	26.5	4.5	46.3	2710
630	50	30.2	4.5	46	3190

---
