Hydraulic surface metal grinding machine MY1224 for industrial

Product Description

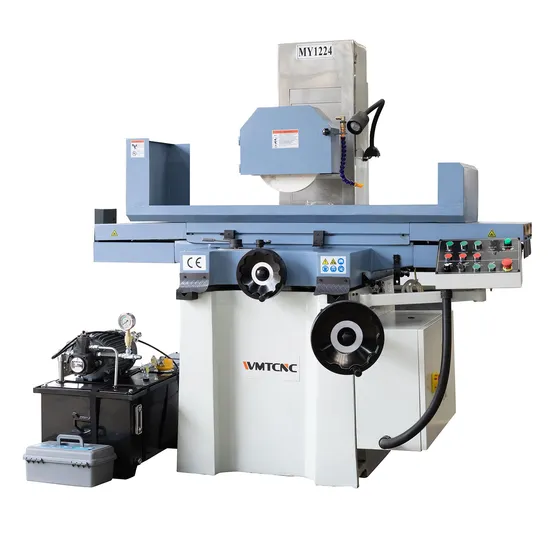

Surface Grinding Machine (MY1224)
**X-axis moving by hydraulic driven
**Y-axis built-in power feed.
**Z-axis moving by Rapid elevating motor
**Table Size: 600x300mm
**Table Travel: 630X320mm
Features:
1,Machine reasonable structure, good rigidity, good looks, easy to operate.
2.Table movement in longitudinal is hydraulic transmission.
3.Spindle motor no vibration and low noise.
Specification:

Item	Specification		MY1224	MY1230
Worktable	Max.workpiece to be ground(LxWxH)		600x300mm	700x320mm
	Max.travel of table(LxW)		640x320mm	640x370mm
	Table max. cutting area(Lxw)		640x320mm	760x370mm
	Number of T-slot		1x14mm	1x14mm
The grinding head	Distance from table surface to spindle center		490mm	540mm
	Wheel size(dia x width x bore)		250x25.4x76.2mm	335x40x127mm
	Spindle speeds		1440r/m	1440r/m
The amount of feed	Table longitudinal (left and right) speed(stepless)		3-20/min	5-25/min
	Table horizontal(before and after)the amount of feed	Continous(variable speed)	150mm/min	150mm/min
		Intermittent(stepless)	0-5	0-5
		The handwheel rotates	4mm	4mm
		Handwheel each grid	0.02mm	0.02mm
	Vertical (up and down)feed wheel feed	The handwheel rotates	2mm	2mm
		Handwheel each grid	0.01mm	0.01mm
Motor	Spindle motor		2.2mm	4mm
	Cooling motor		40kw	40kw
Reversing feeder	Hydraulic motor		1.5kw	1.5kw
	Working pressure		3mpa	3mpa
	Fuel tank capacity		80L	80L
	The max.flow		18L/min	18L/min
Working precision	The machined surface of the base of parallelism		300/0.004mm	300/0.004mm
	Surface Roughness		Ra0.32um	Ra0.32um
Net weight			1.5T	2.1T
Gross weight			1.65T	2.35T
Machine size			1960x1630x1870mm	25600x2430x1920mm

Standard accessories:Tool box, Balancing stand
Flange wrench,Foundation bolts, Open-end wrench
Inner hexagon spanner
Wheel dresser,Balancing shaft
Setting palte, Wheel dresser holder
Permanent magentic chuck Optioanl accessories:
2 axis DRO
CE protection
Machine vice
Vacumn pump

---
