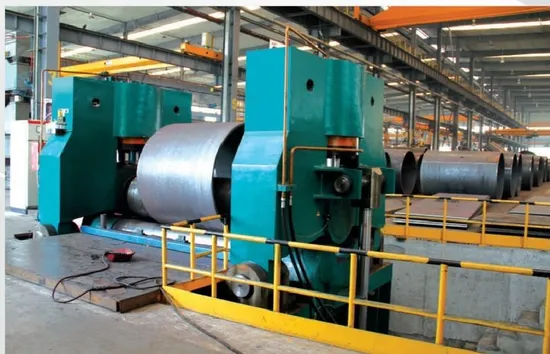

W11s Middle and Small Type Upper Roller Universal Plate Rolling Machine

Product Description

Introduce:
The rolling machine with a universal upper roll is characterized in that it can pre-bend the plate, and its upper roll can move either vertically or horizontally. When the hydraulic oil in both hydraulic cylinders arranged at both ends of the upper roll is applied, the roll moves vertically to apply pressure on the plate and deform it. The motor and reducer are used to drive the upper roll to move horizontally to pre-bend the ends of the plate; as main driving parts, both lower rolls rotate to provide torque for the rolling plate.
The rolling machine with the universal upper roll can pre-bend the ends of plates with one-time loading. It can roll cylindrical, conical, and arc workpieces and is controlled by PLC to increase production efficiency and reduce production costs.
Below are cases:

Model	Pressure on the upper lower (Tons)	Diameter Of upper roller (mm)	Diameter Of lower roller (mm)	Central Distance (mm)	(kw)
					Driving	Hydraulic	Shift
Wi1s-12x2000	65	250	145	200	5.5		0.75
W11S-16×2000	75	260	150	245	7.5		1.5
W1s-16×2500	100	300	165	270	11	5.5	2.2
W11s-20×2000	130	300	165	270	11	5.5	2.2
W1s-20×2500	130	330	180	300	15	5.5	22
W11S-20×3000	160	375	200	330	18.5	7.5	2.2
W1s-25×2500	190	380	220	360	22	7.5
W11s-25×3000	230	420	235	380	30	11
W1s-25×3500	230	440	235	380	30	11
W11S-30×2500	230	410	235	380	30	11
W11S-30×3000	270	450	250	400	37	15	4
Wi1S-30×3500	320	480	260	420	37	15	5.5
W11S-30×4000	380	550	275	460	45	22	5.5
W11S-35×2500	270	450	250	400	37	15	4
W11s-35×3000	380	500	275	460	45	22	5.5
W11S-40×2500	380	500	270	420	37	18.5	7.5
W11S-40×3200	430	540	290	500	45	22	7.5
W11S-40×3500	460	580	290	500	55	22	11
W11S-40×4000	540	630	340	610	55	22	11
W11S-45×2500	430	520	290	500	55	22	7.5
W11S-45×3000	540	590	340	610	55	22	11
W11S-45×4000	610	660	360	650	75	30	15
W11SNC-50×2500	540	580	340	610	55	22	11
W11SNC-50×3000	540	620	360	650	55	22	11
W11SNC-50×4000	690	700	380	700	75	30	15
W11SNC-55×3000	610	620	360	650	75	30	15
W11SNC-55×4000	850	750	420	780	90	37	15
W11SNC-60×3000	690	650	380	700	75	30	15
W11SNC-60×3500	850	710	420	780	75	37	15
W11SNC-60×4000	930	780	440	820	90	37	15
W11SNC-70×3000	850	710	420	780	75	37	15
W11SNC-70×4000	1150	840	480	920	110	45	18.5
W11SNC-80×3000	1050	770	460	880	90	37	185
W11SNC-80×4000	1350	900	520	100	110	45	22
W11SNC-90×3000	1150	800	480	920	110	45	18.5
W1SNC-100×3000	1350	860	480	920	110	45	22
W11SNC-100×4000	1600	940	560	1080	132	55	30
W11SNC-110×4000	1800	990	600	1120	160	75	37
W11SNC-120×300	1600	920	560	148	132	55	30
W11SNC-120×4000	2300	980	640	1280	150	75	37
W11SNC-150×3000	2300	1050	660	1280	150	75	45
