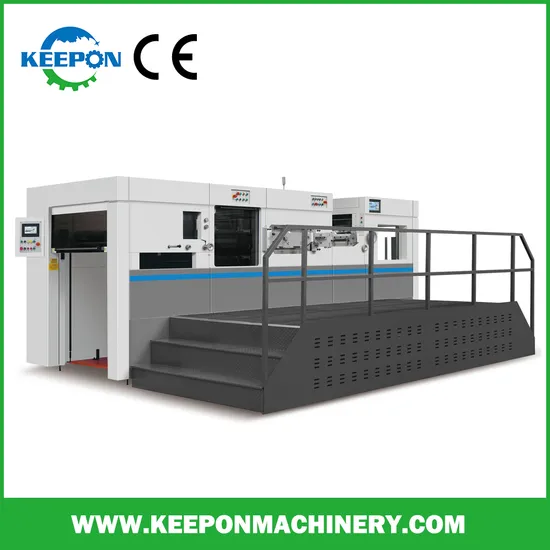

Automatic Paperboard Die Cutter

Product Description

Automatic Paperboard Die Cutter
Video: https://youtu.be/Wu_lpgCk86I
Features:
The MHK-1050CE fully automatic die cutting machines can efficiently complete the die cutting and embossing of products,as well as maintaining the highest precision and product quality.The MHK-1050CE full-automatic die-cutting creasing machine are well equipped and almost can adapt to all die cutting requirements of products.
1. High quality feeder made in Taiwan with 4 suction nozzle for stack paper and 4 suction nozzle for delivering paper , ensures stable and fast paper feeding .
2. Pre-loading unit , non-stop feeding , with Max pile height to 1600mm.
3. The pre-loading unit is equipped with guiding rails , operator move the stack paper to feeder accurately and conveniently .
4. Side and front guiding have sensor which can adjust the sensitivity.
5. The anti-obstacle device prevent the machine damaged.
6. Paper feeding will be slow down when the paper reach the front guiding , achieve more accurate location .
7. Japanese NITA convey belt , the speed can be adjusted .
8. Germany made stainless steel is used for convey board in order to achieve smooth and quick paper delivery .
9. Pneumatic cutting plate lift for easy slide in and out .
10.Easy way to turn over and change die cutting chase and plate with short time .
11.High quality gripper bars made in Japan with long life time .
12.High quality U.K imported chain ensure stability and accuracy in long time running .
13.Automatic lubrication and cooling system for main drive and automatic lubrication for main chain .
14.Overload protection device with torque limiter in index box for the highest safety of operator and equipment .
15.Crank shafts and worm rod is made of 40 Cr with heating handling . Turbine is made of copper .
16.High quality imported air clutch .
17.SMC pneumatic components .
18.The upper , middle and lower stripping frames are controlled by 3 GPRS of cam wheels respectively.
19.Match with the center-line registration system in die cutting unit , the same system also apply to the stripping station to minimize changeover time , Accurate positioning can increase production efficiency.
More Details:
Technical Parameter:

Model	MHC-1060CE	MHC-1080CE
Max sheet size	1060 X 760mm	1080 X 780mm
Min sheet size	400 X 350mm
Max die cutting size	1050 X 750mm	1070 X 770mm
Gripper margin	9-17mm
Inner chase size	1120 X 786mm
Paper range	90-2000gsm paper (0.1-2mm)
	≤5mm corrugated paper
Die cutting accuracy	≤ ±0.1mm
Max die cutting force	300tons
Max die cutting speed	7500 sheets/H
Max feeder pile height	1600mm (wooden pallet included)
Max collection pile height	1400mm ( wooden pallets included)
Main motor power	11kw
Air requirement	0.6-0.7Mpa, ≥0.37m³/min
Full load power	17KW
Machine weight	About 17tons	About 18 tons
Overall dimensions	7800 X 4300 X 2310mm

Our Plant View:
Packing And Shipping:
Clients And Exhibition:
FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.

2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.

3.Q: What is your delivery time?
A: 30-50 days usually

4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
We can send our engineer to your factory for machine installation and operator trainning if you need,
Customer pay the flight tickets,meals and hotel for our engineer.
Salary USD100.00 per day to our engineer.

---
