High-Efficiency Wood Veneer Dryer Machine Made in China

Product Description

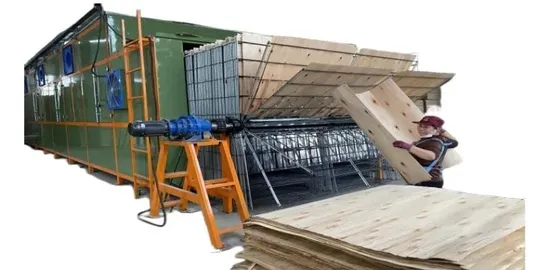

Veneer Dryer Machine
Veneer dryer is a common, efficient drying equipment used in the production line of plywood, wood pallets, density boards and many other woodworking boards. It is mainly composed of air heater, feeder, air drying pipe, cyclone separator, fan and so on.
Advantages:
1. High efficiency and energy saving: This design makes the drying process rapid and uniform, effectively shorten the drying cycle, reduce production costs. At the same time, the wood veneer after drying has good quality, no cracking, no deformation, no discoloration, no mildew phenomenon.
2. Flexible heating methods: The dryer can choose waste wood, hot blast stove heating, steam boiler, heat conduction oil boiler heating according to the actual situation of customers. This variety of heating methods makes the equipment have a wide range of applicability and can meet different production needs. In addition, the equipment can also achieve automatic, semi-automatic, manual and other control methods, easy to operate, easy to master.

Product Parameters

model	BG1333-13+2	Remarks
Working width	2800 mm
Working decks	3 decks
Length of heating section	13*2000 mm=26000 mm
Length of cooling section	2*2000=4000 mm
Total power	181.7 kw
Transport motor	7.5 kw*3=22.5 kw
Heating motor	11 kw*13=143 kw
Cooling motor	4 kw*2+3 kw*2=14 kw
Out put stacker	2.2 kw*1=2.2 kw
Veneer transportation speed	1.5~15 m/min
Heating medium	Saturated steam	Thermal oil
Saturated steam pressure	0.6~1.0 Mpa
Drying temperature	150~170 ºC	170~190 ºC
Steam consumption	4300 kg/h
Oil boiler capacity		2,600,000 Kcal
Veneer density	~590 kg/m³
Available veneer thickness	1.5~3.2 mm
Veneer initial moisture content	70~80 %
Veneer final moisture content	10~12 %
Load ratio	85 %
Drying capacity	~4.3 m³/h
Roller spacing	333 mm
Overall dimension(L*W*H)	46970*5150*4150 mm
Front veneer conveyor	6525 mm
Back veneer conveyor	7365 mm
Hydraulic lift BSJ48-3T	3 pieces (for two in lets and one exit)
Lift table specifications	Stroke: 450~1650mm Table size: 2600*1200mm Hydro-cylinder: φ100 mm*350ST*2 Motor power: 3kw Capacity: 3000kg Dimensions:2600(L)*1200(W)*450(H)mm Weight: 1100 kg/piece
Total weight	98800 KGS
Containers	3*40HQ

Detailed Photos
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.

2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3-Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.


Packaging & Shipping
Packing and Shipping
1. Disassemble the whole machine into parts and put them into containers for easy transportation.
2. The container will be transported to the port by special car.
3. A professional shipping team will bring your products to the port you need
4. Take the bill of lading to the port to pick up the goods.

FAQ
Frequently Asked Questions (FAQ)
1. What products does your company offer?
Our company mainly provides equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
Brazil (where we have local distributors),Argentina,Paraguay,Fiji,Pakistan,Bulgaria,Ghana Etc.
We have experience working with these countries and can visit their factories and see our machines.

---
