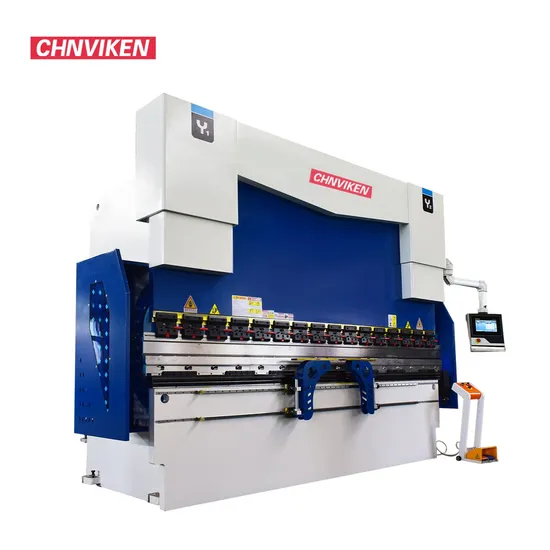

Viken Factory CNC Hydraulic Press Brake Bending Machine

Product Description

Product Overview
-------------------------------------------------------------------------------------------------------------------
High-Precision CNC Press Brake for Various Metalworking Needs This high-precision, reliable CNC press brake is designed to meet various metalworking needs. It features a streamlined design, robotic welding, and stress relief annealing to ensure high precision and long service life.

Bending Capability	80/3200	100/3200	100/4000	125/3200	125/4000	160/3200	160/4000
Nominal Force(KN)	800	1000	1000	1250	1250	1600	1600
Worktable Length(mm)	3200	3200	4000	3200	4000	3200	4000
Column Distance(mm)	2650	2610	3100	2610	3100	2600	3050
Throat Depth(mm)	250	320	320	320	320	320	320
Ram Stroke(mm)	120	120	120	120	120	180	180
Main Motor Power(KW)	5.5	7.5	7.5	7.5	7.5	11	11

The new generation DA-Touch controls offers an even highergrade of efficiency in programming, operation and control of
today's press brakes. Ease of use combined with state-of-the-arttechnology go hand in hand, improving productivity.
The touch screengives access to the proven Delem user-interfaceand enables direct navigation between programming
and pro-duction.Functions are directly located where you need them, offering optimised ergonomics throughout the application.

The DA-53T offers 2D programming that includes automaticbend sequence calculation and collision detection.Highly effective
control algorithms optimise the machine cycle and minimiseset-up time. This makes using press brakes easier, more
efficientand more versatile then ever.

---------------------------------------------------------------------------------------------------
1. Usage and maintenance:Re: CNC hydraulic press brake is totally designed and manufacture by Viken, for usage and maintenance.2. What's the shipping cost from China to your country?Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address withpostcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.3. Payment terms, MOQ, warranty, FOB.Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.Minimum order quantity: 1 set.Warranty: 3 years.FOB: Nanjing / Shanghai/or others port in CHINA.4. What's the package?Re:Fumigation-free plywood case or without package.5. What about commissioning service?Re:We can offer commissioning service, the buyer need to afford air tickets.6. What's policy for guarantee and broken parts?Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.

---
