Smoke Furnace

Product Description

Product Description

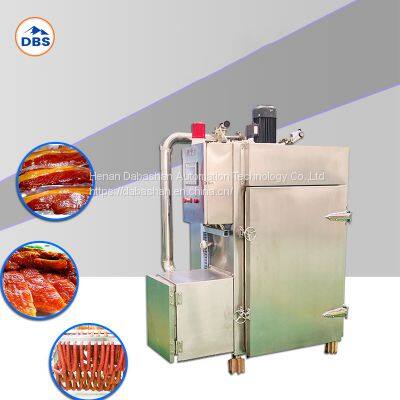

Smoke Furnace
1.Equipment introducetion
It is mainly composed of furnace body, heating system, circulating air system, smoke generating system and electronic control system.
Smoke furnace has cooking, drying, smoking, cleaning and safety protection functions, there has small smoke furnace, semi automatic smoke furnace, fully automatic smoke furnace and other models as well as built-in smoke and external smoke two smoke methods.
Smoke generator device adopts wood grain smoke generator, smoke is stable, fast color, and the smoke into the box of is clean.
Fully automatic smoke furnace is automatically controlled by the computer,7-inch dimensional nylon screen, in a screen at the same time to display various parameters, in order to monitor the running state;
Fully Automatic smoke furnace can realize remote control; print formula, temperature and humidity curve;
The fully automatic smoke furnace can store at least 99 process formulations.
The air circulation system makes the product in the process of baking, cooking, drying, smoking etc,temperature, humidity consistency, so as to ensure that the color of the product is uniform, beautiful color.
Fully automatic smoke furnace’s smoke generating system:
External type wood pellets,wood chips smoke system,not only make the product produce fruit wood aroma, and can make the product smoked from shallow to deep golden yellow.
External fully automatic smoked furnace split sugar furnace smoke system, can be smoked for traditional Chinese products,produce sugar smoked flavor, and the color can be controlled, the depth can become jujube red.
Both smoke-emitting systems are simultaneously to produce smoky aroma and color.
The door’s wood pellets smoke system adopts the world's advanced internal circulation smoke process, low oxygen state smoke, shorten the length of the flue, reduce energy consumption, reduce the floor area of equipment.
Material, insulation body structure as a unit, can be assembled into different combinations.
The material is made of imported SUS304 stainless steel wire board.
The insulation layer adopts imported polyurethane insulation material, high temperature resistance once molding, good insulation performance.
Control components PLC, man-machine interface, solenoid valve and other key components use imported products.
The heating method is the external steam heating or the electric heating method.
Equipped with an online cleaning system.
Door lock and door hinge and sealing strip are reasonably designed, tight sealing and easy to operate.
Door interlocking in the raw and cooked area, area isolation, to meet the HACCP requirements.
2.Scope of application
Suitable for all kinds of sausage, all kinds of ham,dry sausage,sausage, roast chicken, roast duck, roast meat and other Chinese and Western meat products, also applicable to all kinds of lunch meat, grilled fish fillets, dried smoked beans and other categories.

---
