Product Description
Product Description

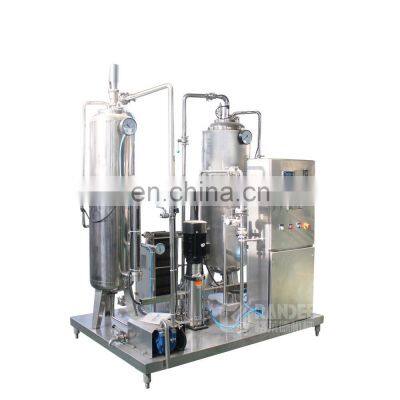

1000liter to 1500liter/hr Soda Water Mixing and Making Machine / Mixer machine carbonated drink beverage co2 mixerProduct DescriptionMachine description:QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of bottle, such as soda water, fruit juice, cola and other soft and hard drinks. Main features:1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high. Products Structure and Working Procedure(1). CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)(2). Main working Procedurea. Cooling water→multi-grade pump→oxygenating CO2→volume controlb. Cooling syrup→multi-grade pump→syrup tank→volume control(a and b → multi-grade pump→static mixing device→c. CO2 air resource→filter and pressure reducing→ tank→filling machine Main technical parameter:ModelQHS-1500QHS-3000QHS-4000QHS-5000QHS-6000Production capacity1000-20002500-30003500-40004500-50005500-6000Adjustable proportion of of syrup and water1:3-1:6CO2 content 1.5-2.5>2.5>2.5>3.5>3.5Cooling water entry temperature(℃)0-5Working pressure of carbonized and syrup tank(Mpa)0.05-0.15Working pressure of storage tank(Mpa)0.2-0.5Power(KW)1.53.74.55.66.2Dimension(mm)900*700*20001720*1140*21001860*1300*21002020*1500*22002020*1500*2200Weight(KG)5001100130016001800 Machine show: Suitable for water chiller unit Related productsCompany information Workshop detail Our team Our exhibition Project cases FAQ
>>
