Automatic Hot Cutter for Webbing

Product Description

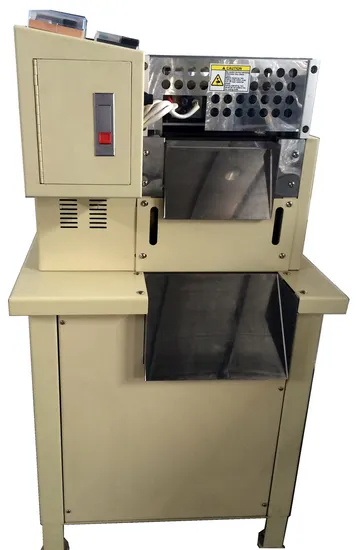

DP-105 Automatic Hot Cutter for Webbing
Functional Characteristics
Electronic Computer Controlling Adopted with numberical length setting and production
Quantity counting control. High Accuracy, pheumatic driving of cutting knife,
Cutting angle from 0 to 45 degree, adjustable in both ways
Function: Spquare cutting, oblique cutting
Application: Precision cutting of webbing, nylon, woven fabrics, stretch, safety belts,
Elastic webbing, stretch webbing, ribbon, color webbing, polyester webbing, belt webbing, cotton webbing, textiles and plastics.
Model: DP-105
Voltage: 110 V / 220 V
Power: 1 / 2 HP
Size: 650mm x 800m x 1200mm
Slice length: 1 ~ 10000Min. ~ Max. (mm)
Slice width(mm): 1 ~ 75
Feeding speed(mm / min): 20000 ~ 120000
NW(kg): 80
GW(kg): 150

Model	Voltage	Power	Net Weight	Gross Weight
DP-105	110V	1/2HP	120kgs	170kgs
	220V
	Measurement	Cutting Length	Cutting Width	Material Feeding Speed
	65cm(L)	1mm-100,000mm	1-75mm	20,000mm~120,000mm/min
	80cm(W)
	130cm(H)

Belt cutting machine unwinder for the heavy material :

---
