High-Precision CNC Lathe Machine with Automatic Feeding System

Product Description

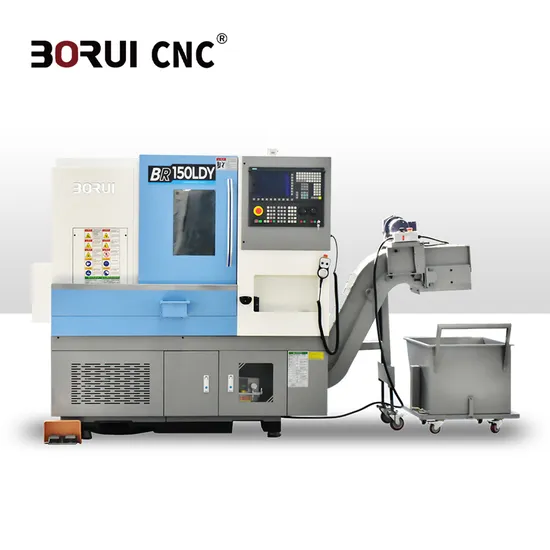

BR150LDY China slant bed cnc lathe machine cnc turning center
Product Description
Product description:
30° slant bed CNC lathe 4500 rpm independent spindle HIWIN lead screw wire gauge 12-station servo turret-----optional power turret
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety ofthreads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
Product main technical Specifications:

ITEM	UNIT	BR150LDY
Maximum turning diameter of bed body	mm	Φ510
Maximum turning diameter on a skateboard	mm	Φ320
Maximum processing length	mm	235
Maximum cutting diameter - disc class	mm	Φ250
Maximum cutting diameter - shaft class	mm	Φ250
Spindle end type and code		A2-5
Diameter of spindle through hole	mm	56
Spindle speed range	r/min	4500rpm
Main motor power	KW	5.5~7.5
Fast moving speed on the X-axis	m/min	20
Z-axis fast moving velocity	m/min	16
Stroke of X axis	mm	135
Z axis stroke	mm	370
Form of guide rail		HIWIN/PMI line track in Taiwan
Tool holder form		12 station servo cutter tower (Y axis living turret optional))
Tool size	mm	1430*1025*1470
Tail seat sleeve diameter/stroke	mm	φ110/L100
Positioning accuracy X/Z	mm	0.01/0.012
Repeat positioning accuracy X/Z	mm	0.006/0.008
Precision of machining	level	IT6
Roughness of surface	um	Ra≤1.6
Overall dimensions of machine tool	mm	1430*1025*1470
Machine tool weight	kg	2700

Standard Accessories:
1.GSK980TDC or Siemens 808D NC system
2. Servo motor 7.5 kw

Optional Accessories:
1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 5.5/7.5 KW

3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck

5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
