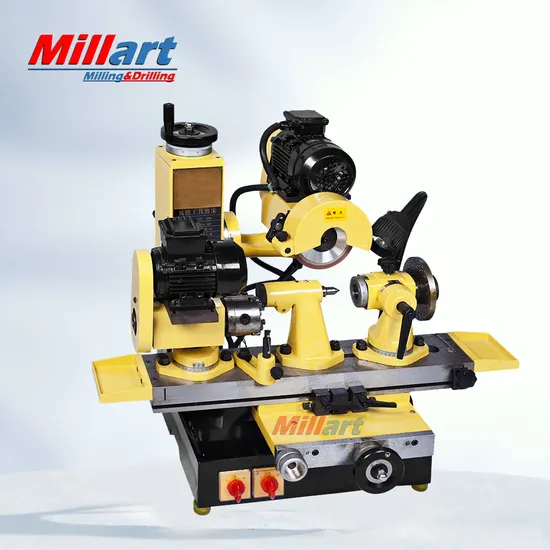

Small Tool Grindring Machine/Mr-6025 Universal Tool Grinder

Product Description

Product description:
Sharpening scope: In hole, outer annulus, column, trench, taper, end mill, disc cutter, lathe tool, square
shape and diamond cutting tool, gear cutting tool and so on.
The working table uses dovetail guide rail or high precision straight line roiling guide rails,good back and
forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise
rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular
paper cutters,etc.

Technical parameter :

Model	MR-6025
Max. Grinding diameter	250mm
About worktable Diameter	350mm
About workable lifting distance	150mm
Elevating Distance of Wheel head	150mm
Rotating Angle of Wheel head	360°
Grinding head speed	5000 RPM
Horse Power and Voltage of Motor	3/4HP,380V
Power	1HP
Inner bore of the grinding work piece	10-50mm
ateral feeding distance	190mm
Worktable area	130×550mm
Elevating Distance of Wheel head	160mm
Height of the head holder	135mm
Taper hole of the main spindle of the head holder	mo-type 4#
Grinding wheel size	150×16×32mm
Dimension	820×650×730mm
Weight	212kg/222kg

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
