Cheap Price Horizontal Manual Sumore China Engine Conventional Gear Head Lathe Machine

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)

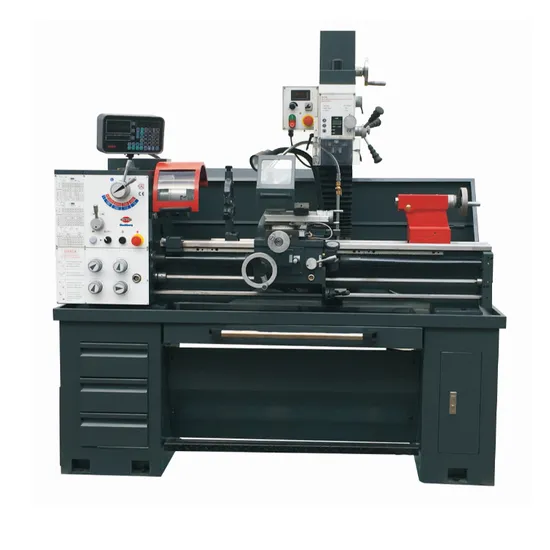

VERY HOT 1 Meter Lathe with Bore 38mm 51mm SP2112
Metal Turning Processing Mini Lathe Machine 1340 1440 6232 6236
(Our lathes can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
SP2112 Lathe machine to metal 330/360 x 1000mm and bore 38mm 51mm CQ6236A CQ6236B CQ6236G CQ6232L 1m bench lathe machine 1340 1440 CQ6236K lathe metal CQ6236L torno paralelo mechanical lathe torno paralelo mechanical CZ1340G/1 tornosparametal looking for distributors Lathes made in taiwan quality CZ1440G/1 lathe machine ordinary lathes for sale SUMORE KAIDA WMT C0636B C6236K C6240K CQ6240F CQ6236F CQ6236A CQ6236D CQ6236AQuick Detail: Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 750/1000mm
Swing over bed: 330/360mm
Swing over gap: 476/491mm
Spindle bore: 38/51mm
Description:
SP2112 lathe we sell is always new condition not used lathe machine, this lathe machine price is reasonable. It is made in China according to quality standard of made in japan lathe machine. Feature / advantage of lathe machine is as below:
Vertical and horizontal feed adopts interlocking mechanism and considerable safety design. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. Strictly following national standards that could meet requirement of worldwide adapted CE and SGS certification. Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch. Not only for common processing work, like turning, end-face, taper or screws, but also on special
occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Product Parameters

Models	SP2112-I SP2112-II
Swing over bed	330mm(13") 360mm(14")
Swing over cross slide	198mm(7-25/32") 212mm(8-1/6")
Swing in gap diameter	476mm(18-3/4") 491mm(9-1/3")
Swing in length of gap	210mm(8-1/4")
Center height	166mm(6-1/2") 179mm
Admits between	750mm(30") 1000mm(40")
Bed width	187mm(7-3/8")
Bed length	1655mm(65-1/8") 1363mm(53-2/3")
Spindle bore	38mm(1-1/2")&51mm(2")
Spindle nose	D1-4" or A2-4"
Taper in sleeve	NO.3 Morse
Speeds number	8 or 16(pole changeable motor) (optional)
Speeds range	70-2000r.p.m.or 35-2000r.p.m.(2 speed motor)
Cross slide travel	160mm(6-5/16") 118mm(4-5/16")
Compound rest travel	68mm(2-11/16")
Lead screw thread	8T.P.I. or 3mm pitch
Feed rod diameter	19mm(3/4")
Cutting tool max section	16mm×16mm(5/8"×5/8")
Threads imperial pitches	36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I)
Threads metric pitches	28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch)
Longitudinal feeds imperial	36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev)
Longitudinal feeds metric	36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev)
Cross feeds imperial	36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev)
Cross feeds metric	36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev)
Quill diameter	32mm(1-1/4")
Quill travel	100mm(3-15/16")
Quill taper	NO.3 morse
For main motor	1.5KW 3PH or 1PH
Packing size	1740/1950x750x1510mm
Net weight	570/640kgs 620/690kgs
Gross weight	620/690kgs 670/740kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
