Hot Selling 240t/H Productivity Xap245h Asphalt Mixing Plant with 3.5 Ton Batch Mixing Capacity Xap245

Product Description

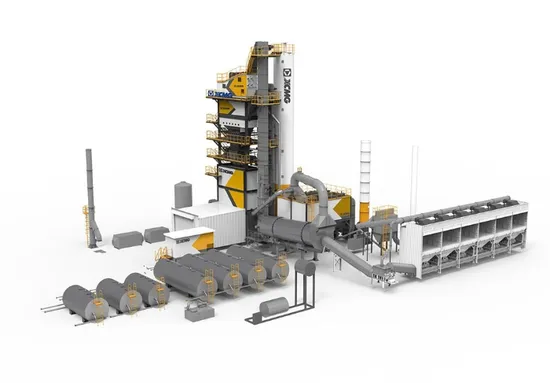

XAP Series Asphalt Mixing Plant
XAP245H Rated productivity (t/h) 240 Mixing capacity (kg/patch) 3500 Asphalt (%) 0.2 Powder (%) 0.3 Aggregate(%) 0.3 Total power(KW) 760 Maximum single power(KW) 160 XAP245H Asphalt Mixing Equipment PRODUCT FEATURE XAP245H Asphalt Mixing Equipment is an international advanced product developed independently for producing asphalt mixture, modifedasphalt mixture, warm-mixing asphalt mixture and others at all levels and be used in supporting with hot recycling equipment and foam asphaltequipment, fully meet the requirements of projects on classified road, municipal road and freight yard.
XAP245H Asphalt Mixing Equipment performance characteristics XAP245H type asphalt mixture mixing equipment is independently developed with international contemporary advanced level products, the equipment can produce all levels of asphalt mixture, modified asphalt mixture, etc., and can be used with thermal recycling equipment, fully meet the needs of highways, grade highways, municipal roads, airports, dams, freight yards and other projects.
The XAP245H type asphalt mixture mixing equipment has high-efficiency screening technology, asphalt secondary weighing technology, precision oil-stone ratio control technology, intelligent flying material compensation technology, intelligent combustion technology, intelligent ventilation technology, high-efficiency heat exchange technology, high-efficiency dust removal technology, uniform feeding technology, high-quality mixing technology, intelligent fault diagnosis technology, etc., highlighting the core characteristics of asphalt mixing equipment that are reliable, advanced, intelligent and green. In terms of environmental protection, the equipment makes the environmental protection effect of the equipment more prominent through the centralized control and treatment of flue gas, dust and noise.
Products Description
hot selling 240TPH XAP245H asphalt mixing plant with 3.5ton batch mixing capacity

Asphalt mixing station, also known as asphalt concrete mixing station, refers to the complete set of equipment used for mass production of asphalt concrete, which can produce asphalt mixture, modified asphalt mixture and color asphalt mixture. It is the necessary equipment for building expressways, grade highways, municipal roads, airports and ports.
Equipment composition:
It mainly consists of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage bin, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product silo and control system.

1.More Efficient Production
Realize zero-speed start, high-speed hoist and low-speed stop, with high speed and small impact. Providing more reliable operation and better continuous production.

2.More Uniform Agitating
Features faster material cycle, more violent countercurrent and more uniform agitating. Greatly reducing cleaning intensity of labor.

3.More Comprehensive Customization
All-around and 3D environmental measures are taken to effectively control the pollution. Realize all-around control of people, vehicles, pumps and plants.
Specification

Item	Unit	Parameter
Rated productivity	t/h	240
Mixing capacity	kg/patch	3500
Metering accuracy
Asphalt	%	0.2
Powder	%	0.3
Aggregate	%	0.3
Aggregate grades	-	-
Fuel consumption	kg/t	6.5
Dust emission concentration	mg/Nm³	40
Asphalt fume	mg/m³	30
Nitric oxide	mg/m³	200
Sulfur dioxide	mg/m³	200
Carbon monoxide	mg/m³	1000
Blackness of exhaustion (Ringelman class)	-	≤I
Total power	kW	760
Maximum single power	kW	160
Floor area	m²	2100(50×42)
Thermal oilfurnace heating capacity	kcal/h	-
Optional finished product bin volume (m)
Optional dual-fuel burner,gas burner, light and heavy oil burner	-	-
