Drill Bits Radial Arm Drilling Machine Tool (Z3040X13A)

Product Description

Factory Promotion Price Z3040X13 Radial Drilling Machine
Factory Promotion Price Z3040X13 Radial Drilling Machine Features:
Radial drilling press machine can be widely used in drilling, reaming, reaming, planing plane, tapping and other processing. High quality and high performance.
1. Small size, reduce the area occupied.
2. The control system is concentrated in the spindle box, variable speed flexible, convenient, feed safety insurance.
3. The basic large-scale use of high-quality materials molding casting, after aging treatment, with high-precision machine tool processing, with high accuracy.
4. The guide surface are hardened, the spindle using nitriding treatment, to extend the service life.
5. Gear with BH carburizing technology to extend the service life.

Model	Z3040X13
Max. Drilling capacity(mm)	Cast iron 40/steel 32
Distance from spindle nose to table surface (mm)	260-1150
Distance between spindle axis and column surface (mm)	360-1300
Spindle travel (mm)	200
Spindle taper	MT4
Spindle speeds range(rpm)	75,130,240,380,660,1200
Spindle feed range (rpm)	0.10,0.16,0.25
Rocker rotary angle	360
Motor power (kw)	2.2
Movements motor power (kw)	1.1
G.W (Kg)	1400
Overall dimension(mm)	1800x810x2300

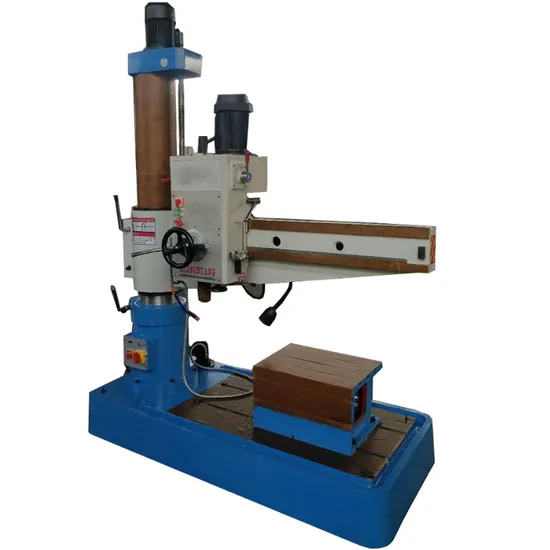

Factory Promotion Price Z3040X13 Radial Drilling Machine Details:
Factory Promotion Price Z3040X13 Radial Drilling Machine In Workshop:
Factory Promotion Price Z3040X13 Radial Drilling Machine Plywood For Delivery:
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Woda Heavy Machinery Co.,Ltd focused on professinal production radial drilling machines, hydraulic press machines and cnc lathe for up to 20 years, is China's mature brand. We "quality of survival" management philosophy, has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.

Q:How about the service?
A: Shandong Woda Heavy Machinery Co.,Ltd is always provide good service, pre-sale--->in sale-->after sale.
Pre-sale: We have professional sales staff who are familiar with the products and are ready to solve problems for you.
In sale: We have a professional technical team with sales staff to provide you with solutions in real time.
After sale: At present, there is no after-sales problem. Once we encounter after-sales problems, we will promptly solve the problem for our customers. If necessary, we can send people to the past.

Q:Where is your manufactory in China ?
A:Shandong Woda Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China.
Convenient transportation, welcome to your visit.
If have any questions pls feel free to contact me via mobile for convenient +8613346326288
If any questions about
Factory Promotion Price Z3040X13 Radial Drilling Machine
Pls Feel Free To Contact Me Via Mobile+8613346326288 In Convenient

---
