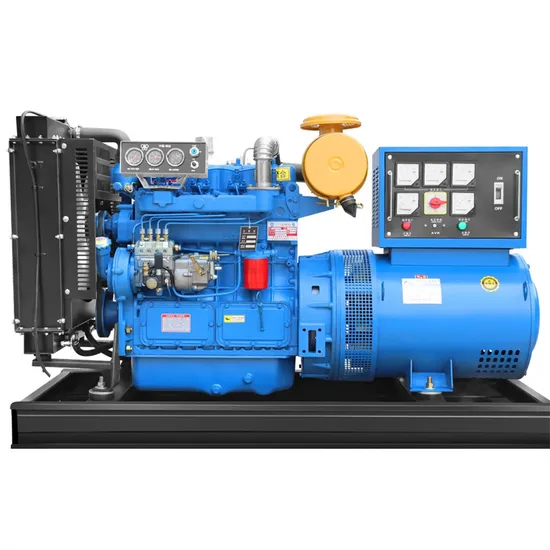

Small Marine Silent Power Weifang Weichai Ricardo 20kw 25kw 30kw 50kw 60kw 100kw 200kw 250kw 25kVA 30kVA 50kVA 60kVA 70kVA 100kVA 150kVA 200kVA Diesel Generator

US$900.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HY-20
Type
Basic Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Low Speed
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Generator Color
According to Customer Requirement
Engine Radiator
Larger Heat Dissipation Area
Engine Cylinder Block
Without Any Leak
Engine Crank Shaft
Increases Intensity
Engine Fuel Injection Pump
Without Any Block in Injector
After-Sale Service
Very Quick Service
Noise
Lower Noise
Spare Parts
Reliable and New Design Parts
Price
Flexible Price According to Order Quantity.
Transport Package
Plywood Box
Specification
compact appearance
Trademark
huayu
Origin
China
HS Code
8502110000
Production Capacity
5000pieces/Year

Product Description

Small Marine Silent Power Weifang Weichai Ricardo
20kw 25kw 30kw 50kw 60kw 100kw 200kw 250kw 25kVA 30kVA 50kVA 60kVA
70kVA 100kVA 150kVA 200KVA Diesel Generator
MAIN SPECIFICATIONS
GENERATOR SET MODEL HY-30 HY-40 HY-50 HY-75
Generator Output (kw) 30 40 50 75
Voltage(V) 400/230 400/230 400/230 400/230
Frequency(Hz) 50 50 50 50
Power Factor 0.8 0.8 0.8 0.8
Phase 3 3 3 3
DIESEL ENGINE MODEL K4102D K4102ZD R4105ZD R6105ZLD
Engine Characters water-cooled,inline,4 strokes,direct injection ,wet cylinder liner
Constant output (kW / kVA) 33 / 41.25 44 / 55 56 / 70 100 / 125
Standby Output (kW / kVA) 36.3 / 45.375 48.4 / 60.5 61.6 / 77 110 / 137.5
Aspiration Turbocharged Turbocharged Turbocharged Turbocharged
Bore(mm) X Stroke(mm) 102X125 102X125 105X125 105X125
Displacement (Liters) 3.5 3.5 4.33 6.49
Compression Ratio 17:01 17:1 16:1 16:1
Machine Governor ≤5% ≤5% ≤5% ≤5%
Exhaust Temperature(ºC) ≤540 ≤540 ≤600 ≤600
Lube Capacity (L) 13 13 12 16
Cooling System Voluem(L) 11 11 16 26
Combustion Air Flow 2.7m3/min 2.7m3/min 5.11m3/min 6.35m3/min
Exhaust Gas Flow 7.95m3/min 7.95m3/min 13.83m3/min 17.1m3/min
Rating Fuel Consumption (g/kw.h) 224 224 231 224
ALTERNATOR
Rated power (kw) 30 40 50 75
Rated voltage(v) 400/230 400/230 400/230 400/230
Rated frequency(Hz) 50 50 50 50
Excitation Type Brushless Brushless Brushless Brushless
Insulation Class H H H H
Power Factor 0.8(lag) 0.8(lag) 0.8(lag) 0.8(lag)
connection Type 3 phase-4 wire 3 phase-4 wire 3 phase-4 wire 3 phase-4 wire
Rated Speed(rpm) 1500 1500 1500 1500
Protection IP22 IP22 IP22 IP22
Approximate Length 2200mm 2200mm 2200mm 2800mm
Approximate Width 900mm 900mm 1000mm 1100mm
Approximate Height 1250mm 1250mm 1300mm 1750mm
GENERATOR SPECIFICATIONS
GENERATOR SET MODEL HY-100 HY-120 HY-200 HY-250
Generator Output (kw) 100 120 200 250
Voltage(V) 400/230 400/230 400/230 400/230
Frequency(Hz) 50 50 50 50
Power Factor 0.8 0.8 0.8 0.8
Phase 3 3 3 3
DIESEL ENGINE MODEL R6105AZLD R6108IZLD R6126ZLD R618ZLD
Engine Characters water-cooled,inline,4 strokes,direct injection
Constant output (kW / kVA) 110/137.5 150/187.5 235/293.75 280/350
Standby Output (kW / kVA) 121/151.25 165/206.25 258.5/323.125 308/385
Aspiration Turbocharged Turbocharged Turbocharged Turbocharged
Bore(mm) X Stroke(mm) 105X130 108X135 126X135 126X155
Displacement (Liters) 6.75 6.85 9.8 11.6
Compression Ratio 16:1 16:1 16:1 16:1
Machine Governor ≤5% ≤5% ≤5% ≤5%
Exhaust Temperature(ºC) ≤600 ≤600 ≤600 ≤600
Lube Capacity (L) 16 16 16 16
Cooling System Voluem(L) 25 25 25 25
Combustion Air Flow 8.8m3/min 9.8m3/min 22m3/min 22m3/min
Exhaust Gas Flow 25.4m3/min 28.3m3/min 63.58m3/min 63.58m3/min
Rating Fuel Consumption (g/kw.h) 225 225 218 218
ALTERNATOR MODEL
Rated power (kw) 100 120 200 250
Rated voltage(v) 400/230 400/230 400/230 400/230
Rated frequency(Hz) 50 50 50 50
Excitation Type Brushless Brushless Brushless Brushless
Insulation Class H H H H
Power Factor 0.8(lag) 0.8(lag) 0.8(lag) 0.8(lag)
connection Type 3 phase-4 wire 3 phase-4 wire 3 phase-4 wire 3 phase-4 wire
Rated Speed(rpm) 1500 1500 1500 1500
Protection IP22 IP22 IP22 IP22
Approximate Length 2800mm 2800mm 3600mm 3600mm
Approximate Width 1100mm 1100mm 1300mm 1300mm
Approximate Height 1750mm 1750mm 2000mm 2000mm
