Product Details
Product Description
Product Description

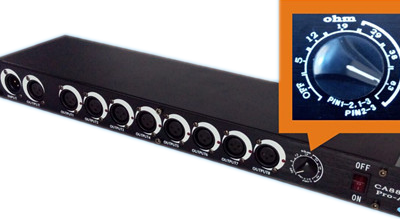

Intelligent Splitter is a DMX512 distribution amplifier, which is specially designed to strengthen and amplify the DMX signal ,and distribute the signal from the DMX controller into 8 channels to output, at the same time, it can test the DMX signal in each in-output ports, and when there is some problem from the signal, it will remind the users in time.
Also can use the testing function of it check the on line or short-circuit broken.
Each in-output port is with the separately power supplier and high voltage isolation technology, and each port has the protection circuit to avoid damaging the IC of the ports from the external current.
The signal will be weakened after a long distance transmission from the DMX controller to the stage lighting, then the dmx splitter can strengthen and amplify the DMX signal to enhance the driving ability of the signal ports(add the controllable lighting quantity ), and can protect the DMX digital controller well.
Due to between the input and output are completely insolated, so it can avoid burning the precision digital DMX controllers from the control cable broken, or the broken in the lighting equipments and dimmer pack, to ensure the safely running . At the same time, it also can be sure that there is the enough strong signal transmitted to every lighting equipments so that advanced the reliability of the whole lighting controlling system.
All new intelligent Splitter not only has all the features of a conventional splitter, but also has strong system, testing and reminding function to the output ports And all input and output port has a protective function for the wrong cable connection, to make the product more stable, and longer life !
Technical specifications
★ 8ch output ports have strong system remind function.
★ All in-output ports have the protective function for the wrong cable connection.
★ Output 8 CHS DMX signal after the electrical isolation;
★ Digital signal system: DMX 512, and true RS-485 rated.
★ I CH signal input ,and 1CH direct signal output;
★ Port style : RS-485
★ The canon of Signal connection: Input XLR-3-M, output XLR-3-F
★ Political isolation of the input to the output: ＞AC300V
★ Voltage: AC90-240V / 50-60Hz
★ Size ： 484*45*140mm “19”1U
★ Packing size: 53.5*18.5*10 cm
★ Weight：2.5 kg
>>
