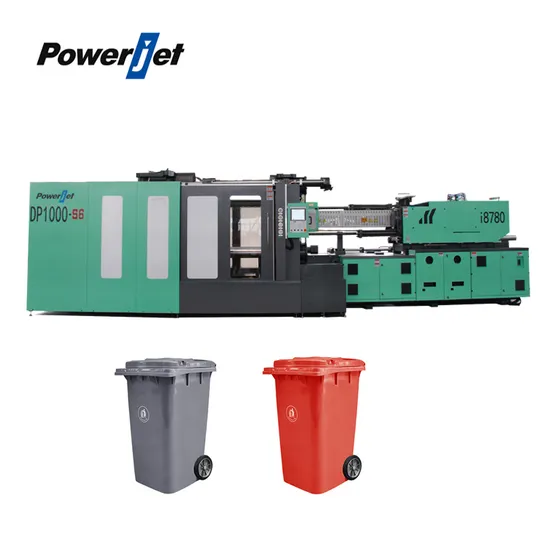

Plastic Waste Bin Making Machine 1500 Ton Two Platen Injection Molding Machine Price

Product Description

Product Parameters
Machine Details

High Efficiency
Low Energy Consumption

The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.


The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.

Ultra-wide space of the mold clamping area, large core pulling space and easy operation.

The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
Application

DESCRIPTION	UNIT	DP1500-S6
CLAMPING UNIT	Clamping force	KN	15000
	Opening stroke	mm	2450/1600
	Max.daylight	mm	3050
	Space between bars	mm	2270*1900
	Max.mold height	mm	1450
	Min.mold height	mm	600
	Ejector stroke	mm	400
	Ejector force	KN	309
INJECTION UNIT	Screw diameter	mm	130
	Screw L/D Ratio	L/D	22
	Injection Pressure	MPa	164
	Shot volume	cm3	9158
	Shot weight (ps)	g	8334
		oz	294
	Injection rate	g/s	1249
	Plasticizing capacity	g/s	164
	Screw stroke	mm	690
	Screw speed	rpm	95
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	2*44+54
	Heater power	KW	93
GENERAL	Oil tank capacity	L	1200
	Machine weight	T	61
	Machine dimensions (L*W*H)	m	12.4*4.1*3.0

Sales & Service Network
We have established the global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become the trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers

FAQ

Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
