Basic Info.
Processing Object
Animal-Derived Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Granular
Product Name

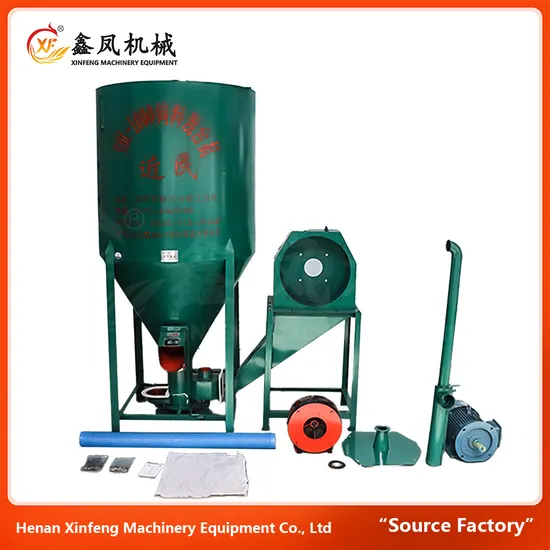

Animal Feed Pellet Making Machine
Usage
Animal Poultry Livestock Feeding
Keywords
Poultry Feed Processing Equipment
Dimension(L*W*H)
2100mm*1260mm*2800mm
Max. Capacity
500-1500kg Feed/15 Minutes
Name
Chicken Poultry Feed Making Machine
Function
Aniaml Feed Machine
Video Outgoing-Inspection
Provided
Applicable Industries
Farms
Key Selling Points
High Productivity
Core Components
Gear, Gearbox, Motor, Bearing, Engine
Transport Package
PE Film
Production Capacity
50000 Sets/Year
Product Description
Hourly production of 3-5 tons, installalion size of 10"3"4.2 meters, suitable for small and medium-sized feedprocessing plants, large andmedium-sized breeding farms, etc.
Adopting SFSP56X40 water drop hammer mil, equipped with a 37kW power motor, further improves the crushing efficiency.
Adopting the 9HWp1000 single shaft double screw belt mixer, with a coeficient of varation CV s 79%, the mixing ismore uniform and theefficiency is higher.
Adopting an independent bufer bin, the crusher can operate continuously and is equipped with an auxiiarymaterial adding hopper, whichis convenient for adding auxiliary materials and further improves efficiency.
| NO | Equipment name | Model | Power |
| 1 | Suction pump | 50L/min | 3kw 380V |
| 2 | Bottom bracket | / | / |
| 3 | Screw air compressor | 3F-8-4Y | 3kw 220V |
| 4 | Swivel casters | 5 inch | / |
| 5 | Maintenance platform | 1 | / |
| 6 | Accessory 2 grain suction machine | 4inch*8m | 3kw 380V |
| 7 | Induced draft fan | 4-72-NO3.2A | 2.2kw 380V |
| 8 | Aviation quick plug | 32A | / |
| 9 | Main material suction machine | 4inch*8m | 3/6/9kw 380V |
| 10 | Accessory 1 grain suction machine | 4inch*8m | 3kw 380V |
| 11 | Vertical spiral elevator | Ф273*2500 | 3kw 380V |
| 12 | Single shaft double ribbon mixer | SLHY2.5 | 15kw 380V |
| 13 | Electrical control cabinet | 500*750*1100 | / |
| 14 | Horizontal conveyor | U200*3200 | 4kw 380V |
| 15 | Pneumatic three-way switching ball valve | 1inch | / |
| 16 | Storage tank | 500L | / |
| 17 | Weighing tank (fuel tank) | 50L | / |
| 18 | Crushing and weighting warehouse | 2.5m² | / |
| 19 | Batching scale bracket | / | / |
| 20 | Pulse dust collector | 18 bags | / |
| 21 | Grinder | 56/25 | 30kw 380V |
