Full Automatic Equipment for Plastic Flosser Manufacturing

Product Description

Full Automatic Equipment for Plastic Flosser Manufacturing Discover the Full Automatic Equipment for Plastic Flosser Manufacturing by Dongguan Tiancheng Machinery Co., Ltd. This vertical injection molding machine is perfect for producing dental floss sticks and toothpicks. It offers automated production, ensuring efficiency and precision. Upgrade your dental floss stick production with this reliable and high-quality machine.
Product Description
Vertical Clamping/Vertical Injection Moulding Machine
The Vertical Clamping/Vertical Injection Moulding Machine from Dongguan Tiancheng Machinery Co., Ltd is perfect for small insert moulding applications, including electrical plugs and electronic parts. Its advanced features make it ideal for precision plastic parts injection moulding.
3/4-section temperature control ensures precise temperature management.
Stepless adjustments for injection pressure, injection speed, and back pressure allow for fine control during the injection moulding process.
Quick lock mode and low voltage slow closing mode automatically open the mould when the machine detects abnormalities, providing enhanced safety for the mould.
Fixing the down mould while moving the upper mould allows for easy positioning of inserts in the mould.
Hydraulic ejection system facilitates convenient removal of finished products from the mould.

Choose the Vertical Clamping/Vertical Injection Moulding Machine for efficient and precise insert moulding. Trust Dongguan Tiancheng Machinery Co., Ltd for high-quality machinery solutions.

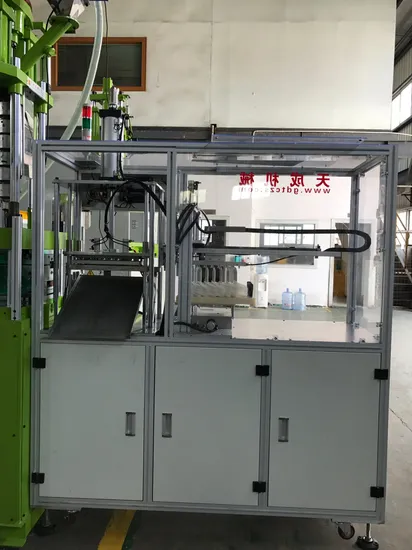

Detailed Photos
Product Parameters

Brand Name	TianCheng		Style	VERTICAL
Condition	New		Model NO.	TC-550-P
Screw Diameter (MM)	30--36		Max.Hydraulic Pressure(Kg/cm3)	140
Maximum injection Pressure (Kg/cm2)	2177--1513		Pump Output (L/min)	57
Theoretical Shot Volume (Cm3)	98--142		Oil Tank Capacity (L)	166
Maximum Shot Weight (G/oz)	87/3.0--160/5.6		Cooling Water Consumption(L/H)	600-800
Injection Rate (Cm3/sec)	68--97		Electric Power (KW)	7.5
Screw Speed (R/Min)	0--210		Total capacitance (KW)	2.8
Screw Rate (MM)	140		Total Wattage (KW)	/
Nozzle Retraction Stroke (MM)	220		Machine Specification(M)	1.8*1.2*2.6
Clamping Force (Ton)	55		Weight of Machine (KG)	2500
Opening Force (Ton)	7.2		Plastic Processed	PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP
Platen Size (MM)	/		After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Distance Between Tie-Bere (MM)	180/240		After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
minimum Mold Thickness (MM)	180/240		Warranty	1 year
Opening Stroke (MM)	200		Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
Max-Distance opening mold (MM)	380/440
Max.Mold Size	450*400
Ejector Force (Ton)	1.3
Ejector Stoke (MM)	/

Certifications
Packaging & Shipping
Company Profile
After Sales Service
FAQ

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose TianCheng Machinery Co., Ltd.?

A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

---
