LDPE LLDPE Plastic Film Plastic Wet Crusher

Product Description

LDPE LLDPE Plastic Film Wet Crusher

Product Description
Function of crusher:
To crusher big plastic bags/film/bottle into small flakes by rotate moving blades and fixed blades cutting. After cutting,the size will be controlled in a suitable size for next washing unit.
Application of plastic crusher:
PE film/PP bag/HDPE bottle/PET bottle,etc
Detailed Photos

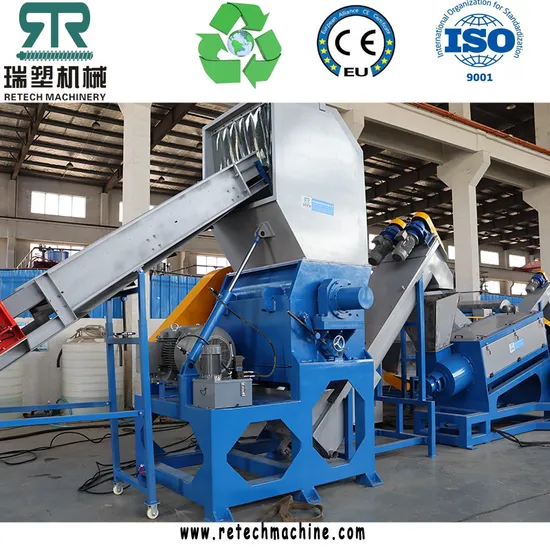

Plastic film crushing machine:
Blades knife of plastic crusher in V shape:
Mesh screen of plastic crusher machine:
Features
Features of our crusher machine:
-optional rotor shape adapt to different plastic materials
-SKD-11 material blades for long time using crusher
-heavy duty for strong and stable running
-crushing with water to get best capacity

Our PE film washing line uses a wet plastic granulator to cut large pieces of PP / PE film into small, uniform shreds sized between 12-18mm. Our plastic granulator has the unique ability to cut plastic film quickly and efficiently using fast spinning open rotor mounted with heavy-duty knives in a double-scissor cut array. As the plastic film enter the granulator's cutting chamber, the rotor knives come into contact with stationary knives effective cutting the film in a continuous fashion.
The size of the PE film shreds are controlled by a screen filter with holes that is mounted underneath the cutting chamber. The plastic film is held within the cutting chamber until it reaches the desired size and falls through this screen filter. Usually speaking, our standard screen filter hole size is 15mm.
To ensure reliability and dulling in the most demanding situations, all knives used in our granulator is made from high quality D2 high-carbon, high-chromium steel (equivalent to SDK11 steel). For the sake of usability, all 12 rotor knives and 3 stationary knives can be easily adjusted with hydraulic assisted access to the cutting chamber.
To further benefit from our already robust structural design, our PE film washing lines use a wet granulation process where water is sprayed into the cutting chamber via nozzles. This not only partially cleans the PP/PE films, it also adds a layer of lubrication to reduce friction and heat during long operations. Based on our testing and experimentation, our wet granulators require 2-3 times less knife sharpening compared to dry granulating.
Product Parameters

No	Name	Power	Capacity (PE Film)
1	RT-800	37KW	300KG/H
2	RT-1000	55KW	500KG/H
3	RT-1200	90KW	1000KG/H
4	RT-1400	132KW	2000KG/H
