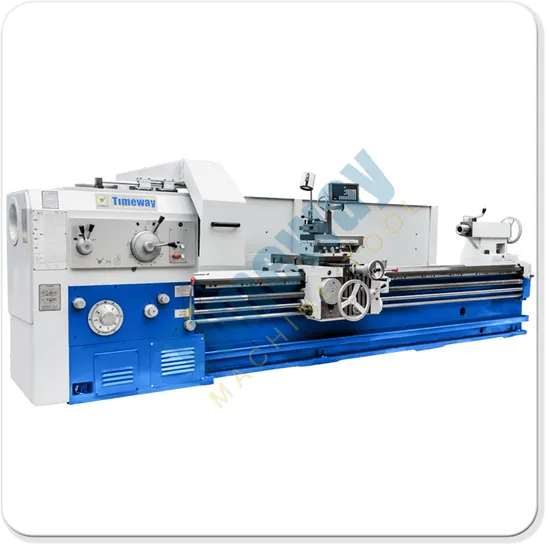

Heavy-Duty Horizontal Lathe Machine Al-1000

Product Description

TIMEWAY --- Heavy Duty Horizontal Lathe
Model: AL-800, AL-1000
***Max. Swing over bed 800mm, 1000mm;
***Max. Length of workpiece 1500mm ~8000mm;
***Spindle bore 100mm (optional 140mm);
***Width of bed 600mm;
***Max. Loading weight of workpiece 3tons;
Features:
AL-800, AL-1000 horizontal lathes are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and diameter pitch threads. They can also be used for broaching oil grooves and keyways. There are also following festures:
1. Casted in whole piece, box type internal structure, of high rigidity, with hardened guideway. The high rigidity and stable precision ensuring strong force cutting.
2. On apron, there is a device operated by a single lever, used for rapid traverse of the carriage. Spindle's braking and rotating direction change is controllled by hydraulic system, or by hand operation according to your choice.
3. The saddle guideway is glued by "TSF" soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, or turn long taper surface in combination with longitudinal feeding.

Specification		Unit	AL-800	AL-1000
Capacity	Swing over bed	mm	800	1000
	Swing over carriage	mm	480	630
	Max. length of workpiece	mm	1000/1500/2000/3000/4000 /5000/6000/7000/8000
	Max. turning length	mm	850/1350/1850/2850/3850 /4850/5850/6850/7850
	Width of bed	mm	600
Spindle	Spindle nose	mm	C11 (optional: C15)
	Diameter of spindle thru hole	mm	100 (optional: 140)
	Taper hole of spindle		1:20/150
	Spindle speed(forward)		18kinds, 5.5~750
	Spindle speed(reverse)		6kinds, 10~775
Feed motion	Longitudinal feed range		64kinds; 0.1~24.32
	Cross feed range		64kinds; 0.05~12.16
	Screw pitch of leadscrew	mm	12
	Number & range of metric thread	mm	50kinds; 1~240
	Number & range of inch thread	T.P.I	26kinds; 14~1
	Number & range of module thread	mm	53kinds; 0.5~120
	Number & range of diametrical pitch thread	T.P.I	24kinds; 28~1
	Rapid traverse speed of carriage	mm/min	4000
Tool post	Distance between spindle centerline and tool resting plane	mm	33
	Section of tool shank	mm	32
	Tool post swing range	°	±90°
	Max. travel of top slide	mm	200
	Max. travel of cross slide	mm	500
Tailstock	Diameter of tailstock quill	mm	100
	Travel of tailstock quill	mm	250
	Taper hole of tailstock quill		Morse 6
Other	Main motor power	kw	11
	Max. weight of workpiece	kg	3000

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
