2024 Cu Channel Forming Machine Fully Automatic 300mm Width 3mm Thickness

US$28,500.00
1-2 Sets
US$28,000.00
3+ Sets

Basic Info.

Model NO.
C U automatic type
Tile Type
Colored Steel
Certification
CE
Condition
New
Customized
Customized
Usage
Roof, Wall, Floor
Transmission Method
Hydraulic Pressure
High Quality Construction and Building M
PLC(Imported Brand)
Material of Rollers
45# Steel,with Heat Treatment
Application
Bulidings Construction
Operation Measurement
Button+Touch Screen
Lenghth Measurement
Encoder
Cutting Model
Hydraulic Profile Cutting
Roller Driven Decelerating
Motor+Chain Transmission
Transport Package
in Nude, with Waterproof Cloth and Stow-Wood
Specification
800*1000*1200mm
Trademark
XINBO
Origin
China
Production Capacity
200set/Years

Packaging & Delivery

Package Size
800.00cm * 100.00cm * 120.00cm
Package Gross Weight
5000.000kg

Product Description

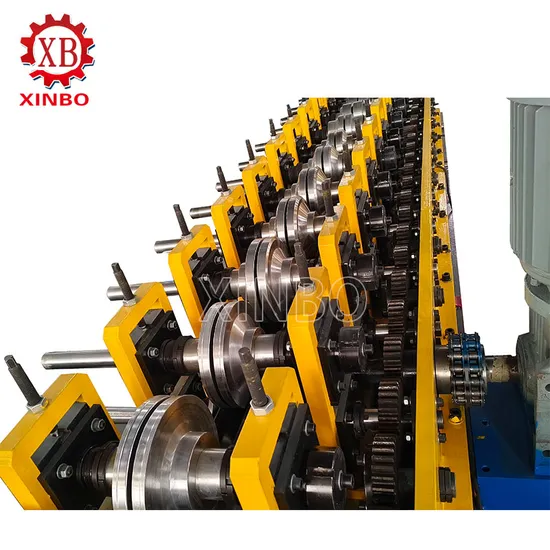

C&Ushaped roll forming machine


The tile making machine adopts reverse synchronous operation technology, with high degree of automation, low labor intensity, simple operation, stable equipment operation, no noise, no pollution, adjustable product specifications, and multiple uses for one machine.



PRODUCT DETAILS

PRODUCT DESCRIPTION

Suitable material Color steel sheet , galvanized steel sheet
Main motor power 6KW with Cycloidal reducer
Hydraulic station power 12kw
Hydraulic oil 40#
Thickness 0.3-0.8mm
Diameter Φ75mm
Electric tension 380V 3phase 50HZ
Material of roller High grade 45# forged steel
Rolling galvanization thickness 0.05mm
Processing speed 0-20m/min
Processing precision within 10m+/-1.00mm
Material of cutting blade Cr12 quenched


PRODUCTION DETAILES

Company Information
Xinbo machine making company is a 100% manufacturer which established since 2014. We are a leading manufacturer for steel plate coiling machinery, roll forming and automatic production lines. The mainly products are used in steel structure industry and construction industry, such as C&Z shape purlin roll forming machine, load-bearing building decking plate roll forming machine, wall and roof roll forming machine used for high-grade steel structure residences; glazed roof panels roll forming machine, ridge cap tile roll forming machine, all kinds of C and U shaped channels roll forming machine, door frames roll forming machine, roller shutter door forming machine, as well as different kinds of decoilers, bending machine, cutting machine, slitting machine and so on. We will guarantee machines good quality and innovative technology, based on our professional and experienced engineers, technicians and workers. Our roll forming machines are be designed and made according to customers' requests. We design and supply different kinds machines, which are to meet all customers' need. As well, we will design roll forming machines to be fit into one 20feet or 40feet container, which will saves shipping cost for customers.

FAQ

Q1.What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts quality office to control every part with passed CE,TUV/BV Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
When you arrive our station, we will arrange to pick up you there!
