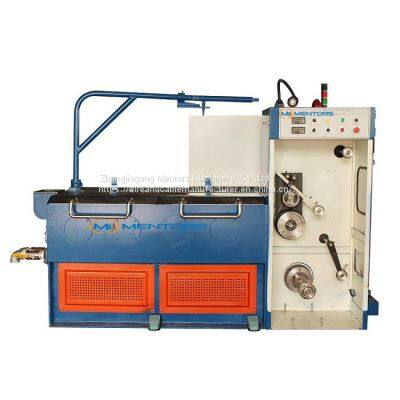

Super Fine Wire Drawing Machine

Product Details

Product Description

Product Description
1. Application:
This machine is special used for drawing wire 0.04-0.15mm.
Finished wire is wound by plastic bobbin.
2. Main feature:
(1) Wire quantity: 1 wire
(2) Max.Inlet wire: 0.45 mm, outlet wire: 0.04-0.15 mm
(3) Raw material: copper
(4) Capstan quantity: 4 PCS(horizontal)
3. Paremeters:

Machine type	SY-24VD
Control system	Push Button
Inverter control	Dual Inverter control
Drawing dies No./Max.	24
Inlet diameter	0.12- 0.45mm
Outlet diameter	0.05- 0.15mm
Drawing line speed	2500m/min
Slip ratio of m/c	10.5%
Frame	Ironed cast
Capstan	Ceramic plasma capstan
Main motor	5.5KW
Spooler motor	2.2KW
Spool bobbin size	Φ250mm or or customized
Machine dimension	2000×1600×1900mm
Machine weight	1700KG

4.Advantage:
1.Ironed cast body is very strong.
2. Adopting world famous bearings and belt type transmission with low noise.
3. Drawing capstan of Super Fine Copper Wire Drawing Machine arrange it in horizontal type, which is easier for operating.

---
