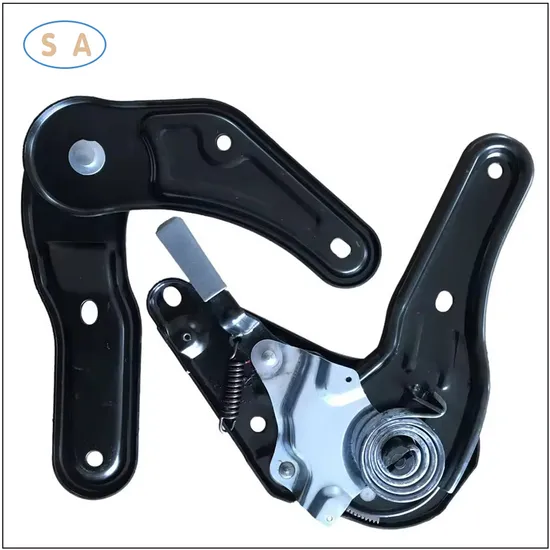

OEM Car Seat Adjuster Auto Accessories Manual Recliner Angle Adjuster Seat Recliner for Auto/Bus/Electric-Assisted Quadricycles

Product Description

Auto Car Seat Backrest Angle Adjuster for Car Seat Reclining Mechanism Product Description

Product Category	Manual Recliner
Type of Key Component	Fan-shaped Toothed Plate,Circled Toothed Plate
Model No.	JF-A16
Adjustable range	30-180degree
Material	Steel 45#
Installation size	mounting hole 90×100mm or 85*110mm
Accuracy of Adjustment	2.8°
Adjustable Range of Handle	30°
Unlatch force of Handle	34N~50N
Single Side/Both Side	Both Side
The hardness of the teeth	38degree-42degree
Net weight/gross weight	1.8kg/2.2kg
Carton size	30*30*5cm
Application	Greet for RV,caravan ,and motorhomes
slide	upper slide, down slide,Mechanical glide path,No damping upper slide
Driver seat backrest absorber	driver main recliner,Plate angle adjusting assembly , Handwheel
seat recliner installation	100*90,115*80
forerake:35°	hypsokinessis:80°

Technical Requirements: 1. The rotation of the corner device is flexible, like the sound of sound and other bad phenomena; 2. The handle operating force is 50~ 70N, and the horizontal clearance of the handle is less than
4mm (tail of the handle); 3. The rotary center 200mm, applying 96N force, the clearance of the adjusting Angle is less than
1.2mm; 4. Illustrates rotation Angle, initial position backward 78 °; 5. The other strength of the modulator should meet the requirements of GB15083. 6. In addition to the electroplating and blue parts, the appearance of each of the parts is black
spray, with no apparent defects.
Procution details
Kindly please noted please communicate with about the status of the seat of including functions , sizes and others before online purchase. We will provide the seat drawing for your finally confirmation. Because below seat pictures and function shown are general purpose seats.
We focuses on the production of seat angle adjusters, seat sliding rails, seat lifters, seat dampers, and seat frames, external punching, drawing, and processing, and the development manufacturing of mould, etc. With superior knowledge of industry development trends, we continue to seek better service modes to meet customers' personalized demands. We also introduced automatic punching equipment and angle adjusters, such as the 10T-400T for the assembling line and for mould production to add stability and boost the enterprises' core competitiveness.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you
got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with
us, we will offer the solve way for you.

Quality assurance:
Quality guarantee for one year, from the day you receive our seats.

Why choose us:
1. Easy to install and remove.
2. Sizes, cover colors, design etc can be customized
3. Best products, best services.
Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons. we can also pack it as your requirement.
Q2. What is your terms of delivery?
A: EXW,FOB or CIF according to the different conditon.
Q3. How about your delivery time?
A: Generally, it will take 1 to 50 days after receiving your payment, we always has goods in rich
stock,but specific delivery time depends on the items and the quantity of your order.
Q4. What is your terms of payment?
A: As for the big amount,T/T 50% as deposit, and 50% before delivery. We'll show you the photos
of the products and packages before you pay the balance.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay
the sample cost and the courier cost.
If there's anything I can help, please feel free to contact with me.

---
