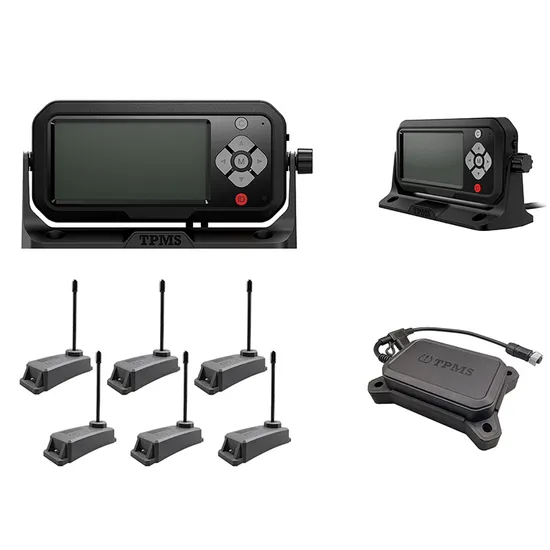

New TPMS Tool Set Car Tire Pressure Monitoring System Tyre Auto Diagnostic Tool

Product Description

*** Welcome to KongTong*** We offer all kinds of Electronic Components ( High frequency sensor , Wire harness sensor , Ultrasonic sensor ,Module , Parking sensor, Tire pressure monitor, Etc.) with a wide range, Good quality, Factory prices and Stylish designs according to your need
More quantity, please contact me about best price and postage More quantity, please contact for best discount and postage
(Support bulk orders and Custom service orders )
TPMS Function Functions of the Tire Pressure Monitoring System
Ensuring driving safety: Abnormal tire pressure is one of the main causes of tire blowouts. When the tire pressure is too high, the contact area between the tire and the road surface decreases, and the pressure per unit area increases, making it prone to blowouts during high - speed driving or when encountering road bumps. The tire pressure monitoring system can detect high tire pressure in time and avoid this dangerous situation. For example, in hot summer, if the tires are over - inflated, during long - term driving, the excessive temperature and pressure may overwhelm the tires, and with the monitoring system, such problems can be prevented beforehand. When the tire pressure is insufficient, the tire will be deformed excessively, and the internal cord layer and steel wire will bear additional pressure. Frequent deformation will also lead to increased heat generation of the tire and accelerate rubber aging, which also increases the risk of blowouts. At the same time, insufficient tire pressure will affect the vehicle's handling performance, such as making the steering heavier and increasing the braking distance. The tire pressure monitoring system will issue an alarm when the tire pressure is insufficient, allowing the driver to handle the situation in time and ensure driving safety. Extending the service life of tires: Normal tire pressure can ensure that the tire has uniform contact with the ground, making the tire wear evenly. When the tire pressure is too high or too low, it will cause increased local wear of the tire. The tire pressure monitoring system helps to keep the tire pressure within an appropriate range, reducing abnormal wear caused by pressure problems, thereby extending the service life of the tires and saving the owner the cost of tire replacement. Improving fuel economy: Insufficient tire pressure will increase the rolling resistance of the vehicle. According to relevant research, if the tire pressure is 10% lower than the standard value, fuel consumption may increase by 2% - 3%. The tire pressure monitoring system can help vehicle owners maintain the normal pressure of the tires, reduce the rolling resistance, improve fuel efficiency, and reduce fuel consumption and exhaust emissions. Product Description
Usage scenarios:
1. Independent display 26 wheels, independent display 7 wheels, car machine 14 wheels display
2. Strap-type installation
3. Suitable for tubeless tires
4. No size requirements for valves
5. By adding an intelligent repeater, intelligent suspension replacement can be achieved
6. Support TTL, 232, 485, CAN communication through the receiver

Display parameter	Monitor name	MDS200 - 26
	RX sensitive	> - 90dbm
	Display working voltage	DC9 - 30V
	Power supply method	Harness Power Supply()
	Standby current	≤100uA
	Working current	<100mA
	Operation temperature	-30 ~ 85°C
	Pressure unit	Bar/ Psi
	Installation	3M stick or Screws(3M )
	Measurement accuracy	0.1Bar/ Psi
	Warning for leakage	Sound & Flash on display
	Display size	135x65x22(mm)
Sensor parameter	Sensor name	B200 - T
	Sensor chips	NXP - FXTH
	Sensor battery	CR2050
	Battery life	≥5 Years
	Sensor working curren	≤10mA
	Sensor Stand - by current	≤10uA
	Hi - TX Power	8dBm
	Low - RX Frequency	125Khz
	Hi - TX modulation	FSK
	Low - RX modulation	ASK
	Pressure range	0 - 1400Kpa
	Frequency	433.92Mhz
	Measurement accuracy	±17Kpa
	Pressure unit	Bar/ Psi
	Operation temperature	-40°C ~ 120°C
	Waterproof level	IP67
Repeater parameter	Repeater name	RPT - 2
	Waterproof level	IP67
	Power Supply	DC9 - 30V
	Operation temperature	-40 ~ 90°C
	TX Power	<10dbm
	RX sensitivity	> - 90dbm

Product Parameters
Company Profile
FAQ FAQ
1.When can we get the reply?
Any inquiries will be replied within 24 hours.
Our Kongtong sales team will try our best to support you.
2.What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.
Welcome to buy sample to test first.
3.Do you have different Parking Sensor series ?
A: Yes,We have ,you can check my shop or send Email to me
4.Can customize,modify and develop products according to the design drawing?Yes,wprovide OEM service and can customize products according to the drawing.
5.How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by IATF16949, CE .
6.What about delivery time?
Sample, We will send to you within 3 days after payment received. Production for big quantity needs 3 to 10days. Andit also depends on product and quantity.
If want to know the exact time. Email us the quantity, We will check the time for you.
7.What about terms of payment?
Payment terms: T/T, west Union , Paypal and L/C etc.
8.How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times
9.How you will send the goods to us?
We will send the goods to you by DHL,FEDEX,UPS, EMS,AIR etc. Or Shipping Methods as you request.

---
