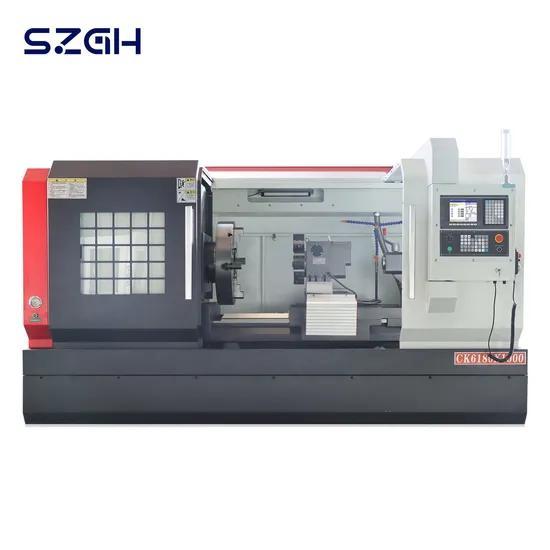

Ck6180 Small CNC Lathe Machine High Precision Horizontal Small CNC Lathe Machine

Product Description

Product Description
CK6180 Small CNC Lathe Machine High Precision Horizontal small cnc lathe machine CNC Lathe Use: Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
CNC Lathe Machine CK6180 Series
Operated with Computer Numerical Control (CNC) systems and provided with precise design instructions, CNC Lathes are machines where the material or part is clamped and rotated by the main spindle, while the cutting tool that work on the material, is mounted and moved in various axis.
CNC Lathes are normally used for machining parts, where the material / part is clamped and rotated whereas the cutting tool is stationery mounted for OD (Outer Diameter) and ID (Inner Diameter) operations, e.g. shafts and pipes. They are ideal for parts that have same symmetry around an axis that could be chucked up (i.e. radially clamped) in the spindle. CK6180 operates on 2-axis and the tool is located in a fixed position at 8 to 24 station turret. The rotating action of the part is called "turning", hence certain types of CNC Lathes are called CNC Turning Machines.
SZGH-CK6180: 3800*1700*1750mm
1)SZGH 130 Servo Motor Driver 3.8KW,15NM;
2)SZGH 2 Axis CNC Absolute Lathe Controller;
3)11KW Spindle Servo Motor ;
4)8 Station Electric Turret;
5)400MM 3 Jaw Manual Chuck;
Machine Features
FEATURES OF MATCHED CNC CONTROLLER:
(1.)2-5 Axis Fully English Type CNC lathe controller;
(2.)800x600 8.4inch real color LcD displayer;
(3.)Electric Turret & Binary code turret,Max: 99 pcs tools;
(4.)Support ATC , Macro function and PLC function;
(5.)Max speed is 60m/min, feeding speed is 24m/min;
(6.)Adapted servo spindle can realize spindle continous position,
(7.)High anti-jammingswitch power(100V-240VAC 50Hz/60Hz→ 24VDC);
(8.)64MB Memory,56M user store room;
(9.)With USB interface it supports file operation in flash disk,system confiquration and software upgrade
(10.)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V
(11.)32 bits ARM microprocessor+FPGA Technology;
(12,)Basic 1/0:36X36, can be edited freely;
(13,)Cutter offset :
Company Profile
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
WHY CHOOSE US?
QUALITY COMMITMENT:
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates

---
