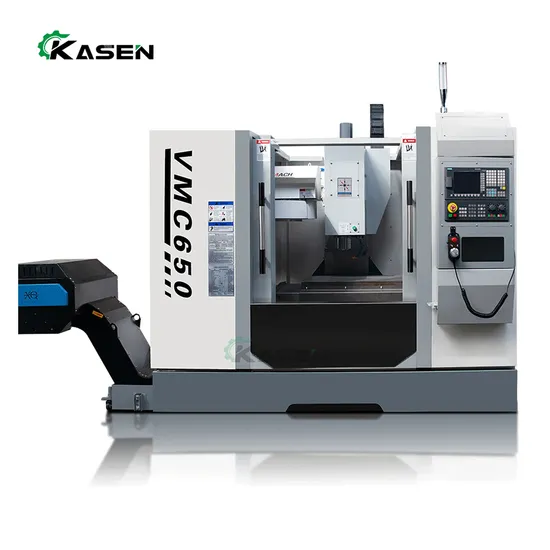

Chinese Vertical Machining Centre Vmc650 3 Axis CNC Milling Machine Center

Product Description

Product Description
China Factory sales Vmc650 Vmc850 CNC Machining Center with Siemens Vertical Machining Center
Features:
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
5.Japanese NSk Bearing Germany R+W Coupling
6. Automatic Lubrication System
7.Chip Conveyor At Optional (According To Customer Requirements) Optional Configuration:
System: Syntec,Siemens,Fanuc Mitsubishi
24 Arm Tool Magazine
4th Axis, 5-axis
Spindle Oil Cooling
Chip Conveyor Oil-Water Separator
Air conditioner
Direct-connected electric spindle 12000RPM
Main technical specifications:

Modle		VMC650
Working table	Table size	800X300
	T-slot	3-16x90
	Max loading capacity of table	350kg
Spindle	Spindle taper	BT40
	Spindle speed	8000 rpm
	Spindle power	5.5KW/7.5KW
Travel	X,Y,Z axis travel	600X360X450
	Distance from spindle nose to table	100-5500mm
	Distance from spindle center to vertical guide way surface	469mm
Feed	Rapid movement speed X,Y,Z	24/24/20 (Optional:48/48/36 )
	Feed rate of cutting X,Y,Z	1~ 10000mm/min
Three axis	X Y Z axis motor torque	10/10/15NM
	X Y Z axis linear guide rail width	35mm
	X Y Z lead screw size	4016
	X Y Z sliding block no	4/4/4
Tools capacity	Tools capacity	16T
	Max tool weight	8kg
	Max length	φ78/300mm
	Tool magazine type	Arm type
Precision	Positioning accuracy X/Y/Z	±0.005mm
	Repeated positioning accuracy X/Y/Z	±0.003mm
Machine tool	Machine size	2400x2000x2550mm
	Casting material model	HT300
	Machine hardness	45-50rkc
	Machine weight	3000kg

Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Wire cutting machine,Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines.

Company Profile


After Sales Service
SERVICE SUPPORT
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.

2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.

3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.

4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
