US$16,000.00-23,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Control Style
PLC Control
Cleaning
Automatic Self-Cleaning
Application
Fruit Juice Milk Centrifuge, Solid Liquid Separatio
material
304/316 Stainless Steel Food Grade
Function
Liquid Solid Continuous Centrifuge
Specialty
by Garvity Separation
Transport Package
Wooden Case
Specification
depend on model
Production Capacity
1t/H-100t/H
Product Description
Instruction

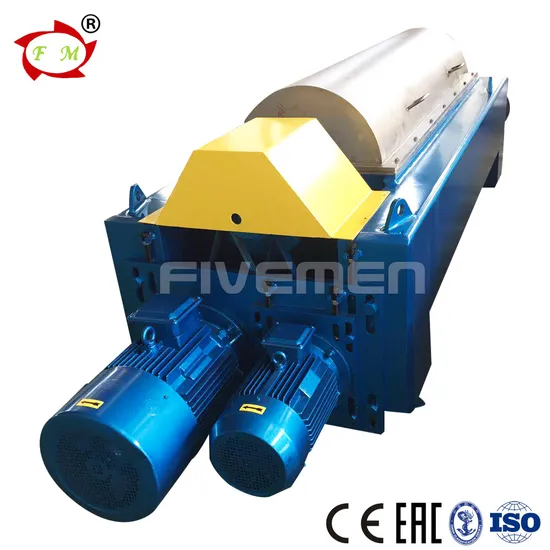

Horizontal screw centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or
classify 1um-5um solid phased particles.
It is wide application range, work continuously, large processing capacity, low cost, convenient
maintenance and so on. It is the best equipment for separating solid-liquid.
Reference standard
1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Application
It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.
For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge),
another is three phase centrifuge (solid liquid liquid centrifuge.)
Appication:
1) City tap water, domestic sludge dewatering;
2) Oil drilling mud dewatering;
3) Sludge Oil Recovery;
4) Fruit juice separation
4) Refinery sludge concentrated dehydration;
5) Distiller 's grains dehydration;
6) Paper, printing and dyeing wastewater separation;
7) Medical sludge dewatering;
8) Soy protein dehydration;
9) Plant oil clarification and separation;
10) Cosmetic clarification and separation;
11) Bleaching powder separation.
Parameters :
2 phase Decanter Centrifuge:
| Type | Bowl diameter(mm) | Bowl length/ Bowl diameter | Bowl speed (r/min) | Main Power(Kw) |
| LW180 | 180 | 2.5-720 | 6000 | 3-5.5 |
| LW260 | 260 | 3.0-4 | 5000 | 7.5-11 |
| LW355 | 355 | 2-4.5 | 4000 | 11-30 |
| LW420 | 420 | 3-4.1 | 3600 | 18.5-37 |
| LW450 | 450 | 2-4.4 | 3600 | 18.5-37 |
| LW480 | 480 | 2-4.2 | 3200 | 18.5-45 |
| LW500 | 500 | 2-4.2 | 3200 | 18.5-55 |
| LW530 | 530 | 2-4 | 3200 | 22-55 |
| LW580 | 580 | 2-4 | 2800 | 30-55 |
| LW620 | 620 | 2-4 | 2800 | 37-110 |
| LW760 | 760 | 2-3.5 | 2500 | 55-132 |
| Note: In case of differences between the table and the user manual, the latter shall prevail. |
3 phase Decanter Centrifuge:
| Type | Bowl diameter(mm) | Bowl length/ Bowl diameter | Bowl speed (r/min) | Main Power(KW) |
| LWS355 | 355 | 3.3-4.5 | 4000 | 15-18.5 |
| LWS420 | 420 | 4.1 | 3600 | 22 |
| LWS500 | 500 | 4.2 | 3000 | 30 |
| LWS530 | 500 | 4.2 | 3000 | 30 |
| LWS580 | 580 | 4.1 | 2800 | 45 |
| LWS620 | 620 | 4 | 2800 | 45 |
| Note: In case of differences between the table and the user manual, the latter shall prevail. |
Main parts
Packing and shippment
Certification
Our company
>>
