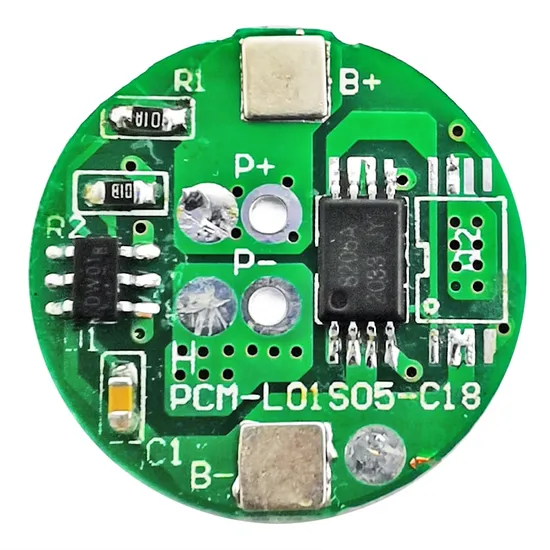

1. Suitable for 1 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 2.5a, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. Protection IC with Fortune DW01-P;
| Items | Specifications |
| Lithium-ion/Lithium Polymer | LiFePO4 |
| Charge | Charging voltage(CC/CV)-1S | CC/CV:4.2V | CC/CV:3.6V |
| Maximal continuous charging current | 2.5a(Max) |
| Discharge | Maximal continuous discharging current | 2.5a(Max) |
| Low current consumption | Current consumption on operation | <10μA |
| Current consumption at power down | <0.1μA |
| Cell-balance | Cell-balance detection voltage | / | / |
| Cell-balance release voltage | / | / |
| Cell-balance current | / | / |
| Over-charge | Overcharge detection voltage | 4.25±0.025V | 3.900 ± 0.025V |
| Overcharge release voltage | 4.15±0.05V | 3.800 ± 0.050V |
| Overcharge delay time | 0.5~2S |
| Over-discharge | Overdischarge detection voltage | 2.50±0.062V | 2.00±0.080V |
| Overdischarge release voltage | 3.0±0.075V | 2.30±0.100V |
| Overdischarge delay time | 40~100mS |
| Discharge overcurrent | Discharge overcurrent detection voltage | 0.2±0.015V | 0.10±0.015V |
| Discharge overcurrent delay time | 10~20ms |
| Discharge overcurrent protection | 4±1a(adjustable) |
| Release condition | Cut-off-load |
| Short-circuiting protection | Load short-circuiting detection voltage | / | / |
| Detection condition | Exterior short circuit |
| Load short-circuiting detection delay time | 100~500μs |
| Release condition | Cut-off-load |
| Internal resistance | Static Drain-Source On-Resistance | <60mΩ(B- to P-) |
| Temperature | Wide range of operation temperature | 40 ~ + 85ºC |
| Storage Temperature Range | -40 ~ +125ºC |
| Dimension | Φ18mm |
