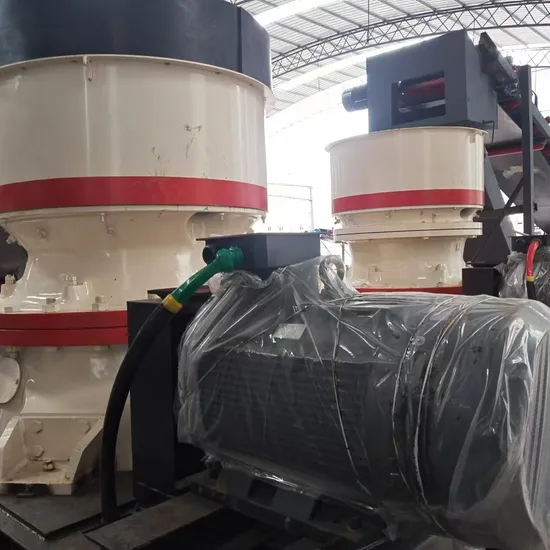

One Stop Cone Crusher Processing Custom Single Cylinder Cone Crusher

Product Description

When the single-cylinder hydraulic cone crusher is working, motor drive the eccentric sleeve by v-
belts, transmission shaft and transmission gear. Dynamic cone rotary pendulum moved with the
action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation.
Material is squeezed in the crushing cavity, impact and breakage, broken material discharge from
the bottom.
Single-cylinder hydraulic cone crusher is widely used in mining, metallurgy, building materials,
highway, railway, water conservancy, chemical industry, etc. It could crush limestone, granite, basalt,
riverstone, coal gangue, quartz, diabase, iron ore, cooper ore, zinc ore, manganese ore with medium
compressive strength or the above.
Product Parameters

	GP100	GP200S	GP300S	GP500S	GP100	GP220	GP330	GP550
Power	75-90kw	110-160kw	132-250kw	200-355kw	75-90kw	132-220kw	250-315kw	250-400kw
Crusher dead weight	7350kg	10900kg	16200kg	33300kg	5800kg	10200kg	15700kg	26500kg
Feeding Port
Crushing chamber	feeding port
EF					46mm	58mm		68mm
F					53mm	89mm	85mm	95mm
MF					95mm	101mm	107mm	113mm
M	206mm				141mm	118mm	135mm	152mm
C	239mm	222mm	247mm	321mm	142mm	182mm	184mm	192mm
EC		295mm	332mm	401mm		213mm	225mm	250mm
EC-LS/EC-TR			332mm	442mm		213mm	225mm	265mm

Hebei Hongwan Machinery Manufacturing Co., Ltd Hebei Hongwan Heavy Industry: Three major production bases.
Two brands: Hebei Hongwan Machinery Manufacturing Co., Ltd.,Global leading one-stop supplier
of green intelligent mining equipment and services, Focusing on green intelligent mining equipment
Tangshan Longrui: Focusing on global recycling and environmental protection equipment.
We have a professional technical research and development team, a comprehensive after-sales
service system, high-quality and affordable products, and one-stop solutions to all your problems
Hebei Hongwan Mining Machinery Factory was established in 1998 and is a large-scale
mining machinery manufacturing enterprise that integrates research and development,
production, sales, and after-sales service.
Hebei Hongwan Machinery Manufacturing Co., Ltd. was officially registered and established
in 2018, engaged in production, sales, import and export business.
Over the years, the company has strengthened the introduction, digestion, and absorption
of domestic and foreign technologies.
The company has strong technical strength, scientific management system, and excellent
product quality, and has developed into an important mining machinery production base in
northern China.
The company's main products include HP series multi cylinder hydraulic cone crushers,
GP (CH, CS) series single cylinder hydraulic cone crushers, PE (C) series jaw crushers,
sand making machines, impact crushers, hammer crushers, YA series vibrating screens,
linear vibrating screens, feeders, sand washing machines, ball mills, magnetic separators,
mobile crushing equipment, and global renewable resource recycling equipment, such as
scrap steel and aluminum crushers, pig iron crushers, hydraulic gantry shears, multifunc--
tional shredders, and more than 100 other products.
There are also technical researchers, testers, and high-quality design, installation, and
after-sales service teams, forming a service plan that integrates design, development,
production, inspection, installation, debugging, and after-sales service.
FAQ 1. Installation:
If the buyer ask Hongwan company to send the technicians to guard to install the machines in the site, the
buyer should take all the charges for the technicians and pay the salary.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what is your main products?
Scrap steel crusher, Single cylinder cone crusher, multi cylinder cone crusher, vibrating feeder, Three axis
horizontal vibrating screen,circular vibrating screen, sand making machine, Jaw crusher, scrap steel crusher.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
(1).you only need one set of crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor
and so on).
(2).what is the max size of the stone (mm/inch)?
(3).what is the output size you need?
5. Does Hongwan provide working video of your crusher machines?
Of course, working video will be provided for your reference.
6. What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine's delivery time
is 30 days.
7.What is the nearest port?
Tianjin port.

---
