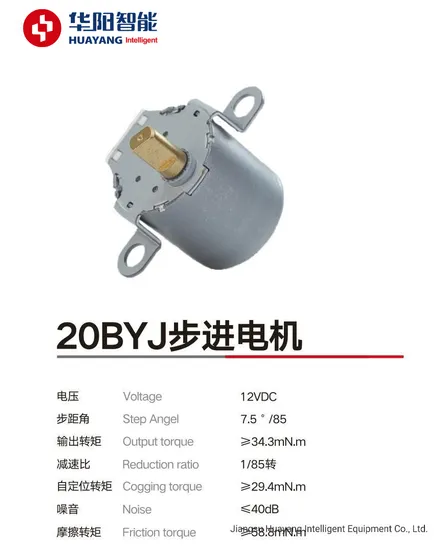

20byj Swing Motor Electric Micro DC Stepper Motor

Product Description

Product Description Place of Origin: Jiangsu, China (Mainland) Brand Name: Huayang Model Number: 20BYJ46 Phase: 4 Certification: CCC, CE, ISO, ROHS, UL Step Angle(degrees): 5.625°/64 Rated voltage: 5v 12v 24v DC Slow dow rate: 1/64 Detent Torque: >34.3mN.m noise: <40dB Useage: Home Appliance
Huayang stepper motor products are widely used in the fields of household appliances,cleaning equipment,pump products and industrial automation,such as air condioner,washing machines,dishwashers ,vacuum cleaners,etc.With the improvement of living standards, more and more families get surveillance camera. The corresponding surveillance camera motor market is developing rapidly.

Performance Parameters

Model	Voltage V	Resistance (Q)/Phase (at 25ºC) (Ω)	Operating Frequenc (PPS)	Pull-in Torque (mN.m) 100PPS	Detent Torque (mN.m)	Max. Freeload Pull-in (PPS)	Max. Freeload Pull-out Frequency (PPS)	Temperature Rise K	Noise dB (A)	Step Angle (1-2Phase)	nsulation Class
20BYJ46	5	60	100	≥29.4	≥29.4	≥500	≥900	≤60	≤40	7.5°/85	E
	12	250	100	≥29.4	≥29.4	≥550	≥900	≤60	≤40

Mechanical Dimensions:mm

---
