3500L/H Ultra Filtration Recycling Treatment Machinery Drinking Mineral RO-UF Plant System Pool Water Purification Machine Factory Price Equipment

Product Description

3500L/H Ultra Filtration Recycling Treatment Machinery Drinking Mineral RO UF Plant System Pool Water Purification Machine Factory Price Equipment
Product Description
What is Ultrafiltration system?Ultrafiltration (UF) is the most widely used membrane separation technology. It is mainly used for the separation of macromolecular substances in solution. It has excellent effects on turbidity reduction, sterilization and separation, concentration and purification of macromolecular substances. In the field of water treatment, it can be used to remove colloids, particles, bacteria, viruses, heat sources and macromolecular organics in the water to purify the water. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane.
What's the working principle of Ultrafiltration membrane?
Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.
Advantages of our ultrafiltration/UF system1. Advanced and famous ultrafiltration membrane element2. High recovery rate of the system3. No phase transformation in the process4. Low energy consumption, short production cycle and low equipment operation5. Small area, simple operation and maintenance, low labor intensity6. The hygienic of the site is clean7. The control system can be designed according to the user's specific requirements

1.Electricity supply:110v-480v, 50hz or 60hz,3 phases

2.Capacity:500L/H or customized from 500L/H to 100Ton/H

3.UV sterilizer/Ozone generator, CIP washing system, anti-scale dosing system is for optional

Specified configuration(Each part is optional, for reference)
Item	Material/Model	Function
Raw water pump	Lingxiao/CNP, SUS-316	Provide pressure for raw water
Quartz sand filter	FRP/SUS-304/SS316	Get rid of turbidity, suspended matter, colloid, etc.
Activated carbon filter	FRP/SUS-304/SS316	Remove the color, free chloride, organic matter, absorb odor, smell, etc... to make clear water
Antis-calant dosing system	SEKO from Italy	Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water.
Security filter	PVC 1mircon/5mircon	Block impurities greater than 5micron(1micron)
UF membrane	UFc90AL	remove particles, colloids, organic impurities, bacteria, heat source and harmful substances etc.
CIP Washing system	including washing tank and pump	Membranes maintenance

Different Water TDS Compare and Usage
	Bottle/Sachet water	City/Spring water	Brackish Bore hole water	Sea water
Saline/TDS(Mg/L, PPM)	2-10	20-1000	2000-20000	20000-40000
Domestic cooking, washing,drinking	Yes	Yes/No	No	No
irrigation, industry,	Yes	Yes	No	No
Ro Material		SUS-304	SUS-316	SUS-316/2507

Pre-treatment filters:1--The quartz sand filter can remove the suspend solid and low the outlet water turbidity. 2--The activated carbon filter will remove color, odor, residual chlorine from the raw water. 3--Water Softener (optional), it can remove hardness (calcium, magnesium ions). 4-- Iron removal filter (optional), it can remove Mn2+, Fe2+, Manganese and Iron ions. Water Pumps---Raw Water Pumps, CIP washing pumps :1.Brand: We can offer standard CNP brand 2.Material: SUS-304 or SUS-316 3.Name and Function: Raw water pump to provide pressure for pre-treatment part. CIP Washing pump for membranes maintenance. Automatic control valve: It can automatically complete the fast rinsing and backwashing of filter materials, and then automatically turn to filter (normal operation) by setting the time on the program

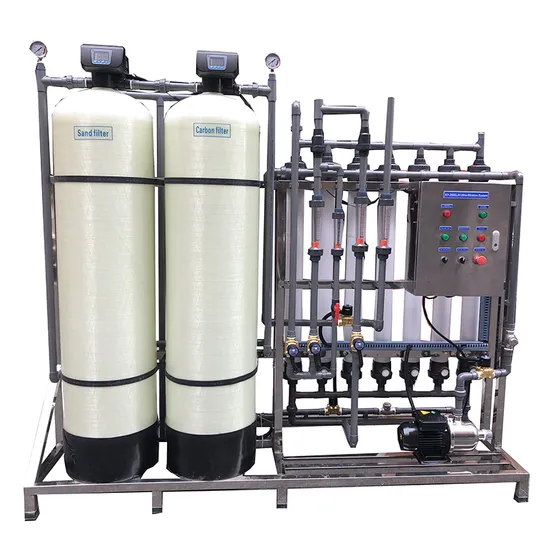

3500LPH UF system1. Capacity: 3500L/H 2. Total power: 0.75KW/H 3. Voltage: AC220V-380V, 50Hz/60Hz 4. Backwash tank: PE-300 5. UF membrane: 7pcs 6. Pre-treatment filters: a. Quartz sand filterb. Activated carbon filterc. Security pp filter Optional Components :A. Regulating wheels B. PLC and Touch Screen C. RO system D. PH adjustment anti-scale E. Automatic cleaning system F. Auto or manual control valve G. U-PVC or stainless steel pipe H. UV sterilizer/Ozone Generator I. Dosing system/Water Softener J. PE or stainless steel raw/pure water tank K. FRP or stainless steel pre-treatment tank

PC panel--Anti-rusty steel material control box
1--Air switch:protect the electric system.
2--AC contactor, thermal relay
3--Indicator light, knob switch
4-- Intermediate relay, Fuse box
5-- Terminals, miscellaneous pieces of
6--Electrical appliances
7--When the raw water pump or high pressure pump overheat, relay will stop. So it can
protect water pumps from damage.
8--PLC(Programmable Logic Controller): will be designed as your requirements.
Packaging & Shipping
Company Profile
Certifications
Installation Instructions

---
